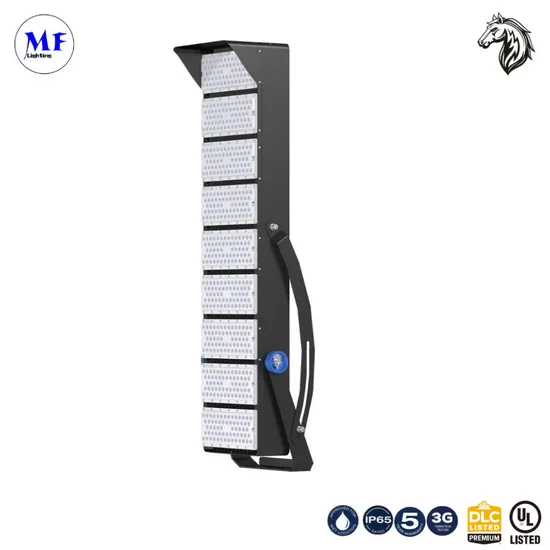

IP65 Dustproof Waterproof 200W 800W 1000W 1800W High Power Stadium Light LED Flood Light for Manufacturing Plant Warehouse Toll Plaza

Product Description

IP65 Dustproof Waterproof 200W 800W 1000W 1800W High Power LED Flood Light Lighting For Mining site quarry Industrial manufacturing plant Warehouse Toll plaza
Feature
Construction
• Ruggedly designed with die cast aluminum housing and clear polycarbonate lens.
• Intelligently designed heat sink to facilitate maximum air flow.
Fixture is lightweight compared to most sports floods and has angle increments calibrated on the housing, standard yoke mount and slip fit mount for precise aiming.
Electrical
• Standard unit comes with 100-277v/347v/480v driver with 6kV internal surge suppressor and 10kV external surge suppressor and has powerfactor above 0.95. Light Performance
• Standard unit comes with a dedicated CCT of 3000K to 6500K.
• Fixture is available in 10°,20°,40°,60° distributions for Sports flood applications. Mounting
• 2 mounting options available - Yoke, highbay yoke. Purchase mounting option separately. Mounting option is field installed.
Characteristic
Cold Weather Starting Minimum starting temperature is -40°C (-40°F) Maximum Ambient Temperature Suitable for use in up to 40°C (104*F) Housing Die-cast aluminum actory Installed Options 7 PIN Receptacle with Shorting Cap ANSI C136. 41-2013 compliant, Photocell Optional 20kV Surge Protection Tilt increment Trunnion: +-90° Lens Clear Polycarbonate Lens Gaskets High-temperature silicone Green Technology Mercury and UV free. RoHs-compliant components. Finish Formulated for high durability and long lasting color. Available in bronze & white, black, silver finish. IP Rating Ingress protection of IP65 for dust and water
Drivers:
Constant Current, Class 2, 120-277V, 50/60 Hz
Constant Current, Class 1, 347/480V, 50/60 Hz
MF-HM-E200
120V: 1.67A,208V: 0.96A,240V: 0.83A,277V:0.72A,347V:0.57A,80V:0.41A
MF-HM-E400
120V: 3.33A,208V: 1.92A, 240V: 1.67A, 277V:1.44A,347V:1.15A,480V:0.83A
MF-HM-E600
120V: 5A, 208V: 2.88A, 240V: 2.5A, 277V:2.17A,347V:1.73A,480V:1.25A
MF-HM-E800
120V: 6.67A,208V: 3.84A, 240V: 3.33A,277V:2.89A,347V:2.3A,480V:1.67A
MF-HM-E1000
120V: 8.33A,208V: 4.8A, 240V: 4.17A,277V:3.6A,347V:2.88A,480V:2.08A
MF-HM-E1200
120V: 10A, 208V: 5.77A, 240V: 5A,277V:4.33A347V:3.45A,480V:2.5A
MF-HM-E1400
120V: 11.67A,208V: 6.73A, 240V: 5.83A, 277V:5.05A,347V:4.03A,480V:2.91A
MF-HM-E1600
120V: 13.33A,208V: 7.69A, 240V: 6.67A, 277V:5.77A,347V:4.61A,480V:3.33A
MF-HM-E1800
120V: 15A, 208V: 8.65A, 240V: 7.5A,277V:6.49A,347V:5.18A,480V:3.75A
Input Surge Protection: DM 6kV, CM 10kV
Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requiresseparate 0- 10V DC dimming circuit. Dims down to 10%.Note: All values are typical (tolerance +/- 10%) OPTICAL NEMA Type NEMA Beam Spread of 1,2,3,4
Specification

Input Power	200w	400w	600w	800w
Lumen Output	29600lm	60000lm	90000lm	120000lm
LED Chip	Lu-mileds 5050
Luminou sEfficacy	148LM/w			150LM/w
LEDQuantity	64pcs	128pcs	192pcs	256pcs
CC	3000K-6500K
linput Voltage	AC100-277/347V/480V
RI	≥70
PF	>0.95
Beam Angle	10°/20°/40°/60°
lRating	IP65
WorkingTemperature	-30°C to +55°C
Warranty	5 years
Lifespan	>50,000hrs
Material	Aluminum hou
Certification	U-L/DLC Premium
Dimension	365 L*201 W*269 H	365 L*332 W*269 H	365 L*463 W*269 H	367 L*594 W*304 H
NG(KG)	4.5	6.5	8.5	11
Gw (KG)	5.6	75	10	13
PackageSize(MMI)	410 L*246 W*227 H	410 L*377 W*227 H	410 L*508 W*227 H	412 L*639 W*261 H

Input Power	1000w	1200W	1400w	1600w	1800w
Lumen Output	150000lm	180000lm	210000lm	240000lm	270000lm
LED Chip	Lu-mileds 5050
Luminous Efficacy	150LM/w
LEDQuantity	320pcs	384pcs	448pcs	512pcs	576pcs
CCT	3000K-6500K
linput Voltage	AC100-277/347V/480V
RI	≥70
PF	>0.95
Beam Angle	10°/20°/40°/60°
lRating	IP65
WorkingTemperature	-30°C to +55°C
Warranty	5 years
Lifespan	>50,000hrs
Material	Aluminum hou
Certification	U-L/DLC Premium
Dimension	367 L*725 W*304 H	369 L*857 W*304 H	369 L*988 W*304 H	369 L*1118 W*304 H	369 L*1250 W*304 H
NG(KG)	125	16.5	18.5	21	24.5
Gw (KG)	145	19	21.5	245	28.5
PackageSize(MMI)	412 L*770 W*262 H	414 L*902 W*262 H	414 L*1033 W*262 H	414 L*1163 W*262 H	414 L*1295 W*262 H

Installation
Dimension

Application
Stadium,Wharf,Airport, Dock, Tower Crane, Large Outdoor Parking Lot, Football Field, Basketball Court, Tennis Court, Golf Course etc.• Outdoor Sports• Soccer Fields • Stadium • Airport/Seaport • Parking Lots • Exhibition Center • Golf course • High Mast
Stadiums and Arenas Construction Sites Hangars Bridges, Monuments and Facades Rail, Work and Shipping Yards Large Distribution Centers LED High Mast Flood Lights are widely used in various applications that require high-intensity lighting over large outdoor areas. One prime example of their application is in sports stadiums. These lights are strategically installed on high masts surrounding the stadium, providing bright and uniform illumination across the playing field and spectator areas. The powerful beams of light ensure optimal visibility for players and spectators, allowing for evening and night-time sporting events to take place.
Another significant application of LED High Mast Flood Lights is in airport lighting. These lights are installed along runways, taxiways, and aprons to ensure safe and efficient aircraft operations during low light conditions. The high mast design and superior light output of LED flood lights allow for clear visibility, aiding pilots in navigation, landing, and takeoff procedures.
Furthermore, LED High Mast Flood Lights find extensive use in industrial complexes, shipping ports, and construction sites. These areas often require high-intensity lighting to ensure the safety and productivity of workers during night shifts. The broad and powerful illumination provided by these lights helps in enhancing visibility, improving security, and facilitating smooth operations in these challenging environments.
Overall, the application of LED High Mast Flood Lights extends to a wide range of outdoor settings, including sports stadiums, airports, industrial areas, and construction sites. Their energy efficiency, durability, and superior lighting capabilities make them an ideal choice for illuminating large outdoor spaces, enabling improved visibility, safety, and functionality in various industries and activities.
1.Sports Events: LED Stadium Lights are commonly used to illuminate sports events such as football, baseball, soccer, and basketball games. They provide bright and uniform lighting, ensuring clear visibility for players, referees, and spectators.
2.Concerts and Performances: LED Stadium Lights are also utilized in stadiums for concerts, music festivals, and other live performances. They create dynamic lighting effects and can be synchronized with the music to enhance the overall atmosphere and stage presence.
3.Broadcasting and Televised Events: LED Stadium Lights play a crucial role in televised sports events. Their high-quality lighting ensures that cameras capture clear, vibrant images for viewers at home.
4.Outdoor Arenas and Stadiums: LED Stadium Lights are suitable for outdoor arenas and stadiums due to their durability and resistance to weather conditions. They can withstand rain, wind, and extreme temperatures while maintaining consistent and reliable illumination.
5.Training Facilities: LED Stadium Lights are used in training facilities for various sports. They provide optimal lighting conditions for athletes to practice and improve their skills, offering a safe and well-lit environment.
6.Recreational Facilities: LED Stadium Lights are employed in recreational facilities such as community sports fields, parks, and playgrounds. They allow for extended playing hours, enabling individuals to engage in outdoor activities even after sunset.
7.Special Events and Celebrations: LED Stadium Lights are often employed for special events and celebrations held in stadiums, such as fireworks displays, parades, and cultural festivals. They add a festive and vibrant ambiance to the venue.
8.Safety and Security: LED Stadium Lights contribute to the safety and security of stadiums by providing well-lit areas for spectators, staff, and emergency personnel. They help prevent accidents, deter criminal activities, and facilitate crowd management.
9.Sponsorship and Branding: LED Stadium Lights can be customized to display advertisements, sponsor logos, and messages, allowing for effective branding opportunities during sporting events and other gatherings.
10. Architectural Lighting: LED Stadium Lights are utilized for architectural illumination, highlighting the unique design and features of stadiums, creating visually appealing landmarks in the night sky.
