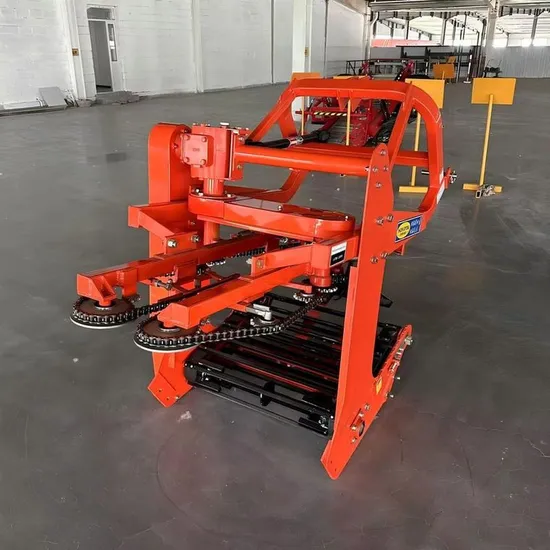

4um-80 45 Square Steel Chain Bar Material Agricultural China Cassava Harvester Machine

Product Description

Product Description
Cassava Harvester
Cassava harvester is an agricultural machinery used for efficient cassava harvesting. It can complete the processes of digging, conveying, separating stems, removing soil and collecting cassava in one go. This equipment can dig or pull out cassava from the soil, clean, cut and collect it through mechanized operation, greatly improving the efficiency of cassava harvesting.
Cassava harvester has many significant features. First, it is usually used in conjunction with a standard tractor, has a dual power output device, and is easy and comfortable to operate. Secondly, the equipment can dig all cassava roots without damage and has high working efficiency. In addition, cassava harvesters are also highly adaptable and can operate under different terrain and soil conditions. Some models are also equipped with advanced technologies such as GPS guidance systems.
Cassava harvesters have a wide range of applications and are mainly used for mechanized harvesting in large-scale cassava planting areas. In addition, through mechanized harvesting, cassava straw can be chopped and returned to the field, and turning the soil and covering the buds can also improve soil fertility and cassava germination rate.
Product Parameters

4UM-80 PARAMETER LIST
NO.	PROJECT	DESIGNVALUE	NO.	PROJECT	DESIGN VALUE
1	Model	4UM-80	11	Type of excavation device	Fixed Spade
2	Structural Style	Three Point Suspension	12	Blade material	65Mn
3	Working dimensions (length*width*height)	2750*1250*1340mm	13	Digging depth adjustment range	0~400mm
4	Transport dimensions (length*width*height)	2750*1250*1340mm	14	Conveyer type	Grid chain
5	Overall Weight	400kg	15	Conveyorchain clearance	95mm
6	Working Width	800mm	16	Chain bar material	45#steel
7	Operation Efficiency	>=5ha/h	17	Collection methods	Catch frame
8	Supporting Power/Machine Horsepower	≥50Hp	18	Volume of collection box	0.5m³
9	Matched To The Power Output Shaft Speed	540r/min	19	Heating Method	Lower door for unloading
10	Matching Hanging Width	730mm	20	Unloading height	700mm
Note:The values in the specification table are theoreticalvalues,please refer to actualvalues.

Detailed Photos
IMPROVE EFFICIENCY
Cassava harvesters can quickly complete the digging, separation, and collection of cassava. Compared with traditional manual harvesting, the efficiency is greatly improved, and the harvesting cycle can be significantly shortened, which is especially suitable for large-scale planting areas.
REDUCE LABOR INTENSITY
Traditional cassava harvesting requires a lot of manpower and has high labor intensity. The use of harvesters reduces the workload of manual digging and handling, reduces labor intensity, and saves labor costs.
REDUCE DAMAGE
Advanced cassava harvesters focus on the protection of cassava tubers in design, which can achieve damage-free digging and avoid mechanical damage to cassava that may be caused by manual digging, thereby improving the quality and commodity value of cassava.
STRONG ADAPTABILITY
Cassava harvesters usually have good terrain adaptability and can operate under different soil conditions and planting densities, reducing the difficulty of harvesting due to environmental differences.
VERSATILITY
Some cassava harvesters can not only complete the digging and collection work, but also process cassava stems and leaves at the same time, chop them up and return them to the field, increase soil fertility, and realize resource recycling.

FAQ
Q1. What are your terms of payment?
A1:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q2. What are your terms of delivery?
A2:EXW, FOB, CFR, CIF. Which delivery terms depend on your choice?

Q3. How about your delivery time?
A3: Generally, it will take 30 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Most time we have some in stock.

Q4. Are you interested in a dealership with a local company?
A4: Of course, we are quite interested in this business. We'd like to cooperate with some local partners to sell more HONGYOU machines in the local market and supply better service.


Q5. Do you test all your goods before delivery?
A5: Yes, we have 100% test before delivery and we can email you the test video if you need it.

Q6.Can you customize the machine for me?
A6: Yes, we can customize it according to the customer's requirements.

---
