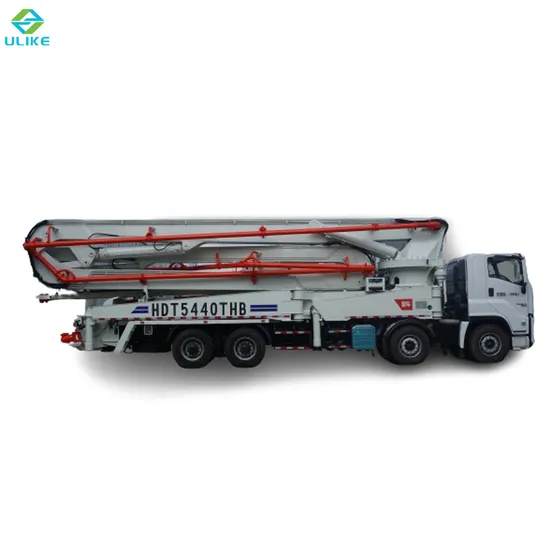

52m Concrete Pump Truck Construction Equipment HOWO Dongfeng Truck Mounted Concrete Pump

Product Description

Product Description
a)According to Chassis brand: HOWO, Dongfeng, JAC, Foton, Shacman, DFAC and else
b)According to drive type: 4*4, 4*2, 6*4, 6*6,8*4 and so on
c)According to engine discharge: Euro II, Euro III, Euro IV, Euro V
Product Parameters

Model		Unit	33m
Total vehicle parameter	Length	mm	11000
	width	mm	2550
	height	mm	3700
	Total quality	kg	21000
Boom leg parameter	Vertical height	m	33
	Horizontal length	m	29
	Vertical depth	m	22
	Min. unfolding height	m	8.5
	Length of the first jib/Rotary angle	m m/°	7425/90
	Length of the second jib/Rotary angle	m m/°	5770/180
	Length of the third jib/Rotary angle	m m/°	5460/180
	Length of the fourth jib/Rotary angle	m m/°	5405/230
	Length of the fifth jib/Rotary angle	m m/°	5250/220
	Folding way of Boom		RZ-Type
	Turntable rotation Angle	°	±365
	Width of the forth leg	mm	5600
	Width of the back leg	mm	6800
	Distance of the back and forth leg	mm	6650
Pumping system parameter	Output in theory	m3/h	90
	Theoretical pumping pressure	Mpa	8
	Pump times in theory	times/min.	26
	conveying cylinder & stroke	mm	φ200mm×1400mm
	Hydraulic system		Open
	Valve Type		S Valve
	System Oil pressure	Mpa	32
Pumping system parameter	Oil tank volume	L	580
	Water tank volume	L	530
	Hopper Volume	M3	0.7
	Discharging Height	m	1.4
	Pipe diameter	mm	125
	Length of the end hose	mm	3000
	Diameter of the end hose	mm	125
Chassis Parameter	Chassis model		ZZ5215N5113E1
	Wheel Base	mm	5100
	Driving Form		4x2
	Engine Model		MC07.28-50
	Motor Power	HP	338
	Emission Standard		Euro V
	Max. speed	Km/h	102
	Tire Specs		12.00R20

Detailed Photos
Related Products
Company Profile
Founded in 2006, HENAN ULIKE INDUSTRY Co., Ltd. is a top package equipment solution provider in China, especially for Commercial Vehicle, Engineering Machinery, construction machinery, agricultural machinery, parts and so onWe Ulike industry are always committed to offer our customers high quality products with reliable performance, competitive price and comprehensive services, to ensure every engineering project to be run smoothly on schedule. With over Fifteen years' experience in the field of Commercial Vehicle, Engineering Machinery, construction machinery, agricultural machinery and accompanying to fulfill strictly ISO 9001: 2008 standard, we had established and have been consistently keeping good business relationship with many general contractors, civil engineering firms and construction companies throughout the world. We Ulike industry participated as package equipment provider previously include airport projects in Africa, power plant projects in Middle East, dredging projects in South America, highway projects in Oceania, rural and municipal road projects in Southeast Asia, and we are still achieving more and more projects at present. To provide reliable products with quick delivery time, to make prompt reaction for spare parts and after-sales services, to visit the users field regularly for local training and maintenance, Ulike industry has been often praised by our customers and has taken great reputation as a trustworthy project partner. Ulike Inductry believe in combining our own achievement together with our customer benefits. Open communication, effective planning and elaborative preparation always commit us to execute and deliver our promises for our customers all over the world.
Packaging & Shipping
Packing and Shipping
01 CONTAINER: Put the machine into container, Maybe need disassemble, cheapest freight and fast shipping ;
02 FLAT RACK: Often used to ship medium equipment,max load-bearing is 35tons.
03 BULK CARGO SHIP: Which is better for bigger equipment,no need disassemble.
04 RO - RO :The machine is driven directly into the ship and does not need to be disassembled. After Sales Service

Before-Sale	After-Sale
1. Airport pickup, Booking hotel.	1. Visiting the famous scenic spots in zhengzhou.
2. Visiting our company yard, Enjoying Free test drive.	2. 1-Year warranty for All the equipments
3. Different machines to compare with each other.	3. A lifetime of parts and technical support.
4. Interpreting mechanical configuration information in detailed.	4. Fast parts deliver and quick reply for any feedback .

FAQ
1. Who are we?
Ulike industry is an international trade company established in 2006 and located in zhengzhou city, the center of china.Our company is one of the most powerful and potential commercial vehicles, used engineering equipment & construction Machinery suppliers in China, which has abundant experiences in exporting the machinery to the overseas customers. We win a high admiration and is widely trusted in Africa, Middle East, West Asia, South East and so on! The most important thing is that we have ability and would like to provide you high-quality products at competitve price all the time.
2. How can we guarantee quality?
Make contract with customer.
Accept visting our yard all the time.
According to the customers request to do certificate.
3. What is your delivery time?
A: The delivery time is within 15 working days.
4. What is the payment term?
A: Normally we accept 30% deposit by TT for production, 70% balance by TT before shipping. Also can be the terms according your requirements
Currency: USA.EURO.CNY.
5. Why choose us?
More than 15 years exporting experience with Asia, Middle East, South America and Australia all around the world. high-quality resources and channels provide the most cost-effective products, and 24 hours' service.

---
