Basic Info.
Spinning Method
Rotor Spinning
Producing Process
Spinning Equipment
Certification
CE, ISO9001: 2000, TUV
After-sales Service
10 Years
Inner Drum Material
SS304
Outer Drum Material
SS304
Frequency Control
Customized
Way of Installation
Hard Mounted, Fixed
Invert Control
Is Able to Add Extra to Reduce Start Current
Cover
Is Able to Add Extra
Electricity Parts
Scheneid
Transport Package
Wooden Case
Production Capacity
100 Sets Every Two Monthes
Product Description

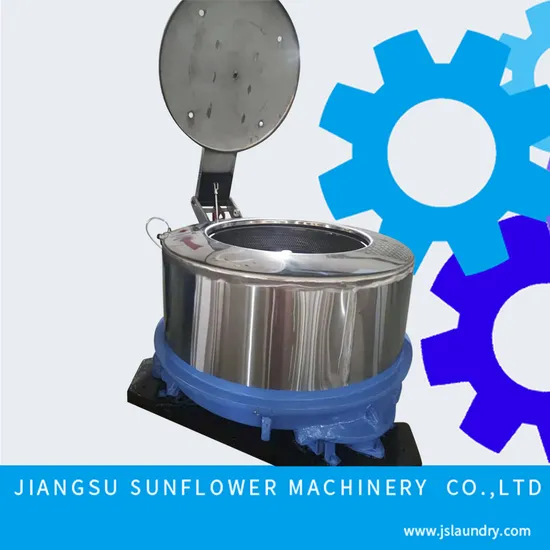

industrial fiber hydro extractor machine
This hydro extractor is to do water extracting job after the fabric is washed
Features:
1.The drum of this machine is made of stainless steel
2.Independent three legs suspended instruction can avoid shock caused by unbalanced loaded.
3.The extracting speed of this machine is from 1000 rpm to 750rpm
4.The spinning machine will make the material inside dried by its high Centrifugal speed
5.The capacity of this hydro extractor series can be 40kg 60kg 90kg 120kg 210kg
6.Equipped with special brake arms which is durable and reliable make the machine more safe.
7.The motor will start with slow speed and reach supposed speed gradually, the drum will be driven by triangle rubber belt, running smooth and synchronous.
Specification A : Rubber Belt Driven Type Hydro Extractor Machine
model | motor power | drum dimension | overall dimension(mm) | weight (KG) |
TL500 (50kg) | 1.5KW | Φ 500 | Φ 950*600 | 300 |
TL600 (60kg ) | 2.2KW | Φ 600 | Φ 1220*700 | 500 |
TL800 (90kg) | 4KW | Φ 800 | Φ 1720*840 | 800 |
TL1000(120kg) | 5.5KW | Φ 1000 | Φ 1830*840 | 1400 |
TL1200 (210kg) | 7.5KW | Φ 1200 | Φ 2100*1050 | 1800 |
TL1500(350kg) | 8KW | Φ 1500 | Φ 2550*1400 | 2100 |
TL1800(650kg) | 12KW | Φ 1800 | Φ 2700*1560 | 2300 |
Specification B : Motor Directly Driven Type Hydro Extractor With Invert Controller
MODEL | MOTOR POWER | Invent Power | DRUM DIMENSION mm | CAPACITY kg | OVER ALL SIZE mm | NET WEIGHT kg |
SME301-1000 | 5.5kw | 5.5kw | 1000mm*450 | 200 | 1400*850 | 1500 |
SME301-1200 | 7.5 | 7.5 kw | Ф1200×550 | 300 | Ф1800×900 | 2200 |
SME301-1500 | 10 | 11kw | Ф1500×680 | 550 | 2550×1950×2400 | 2800 |
SME301-1800 | 12 | 15kw | Ф1800×760 | 900 | 3100×2450×2800 | 3400 |
SME-2000 | 18.5KW | 18.5KW | Ф2000*900 | 1100 | 3600*2970*1500 | 4000 |
industrial fiber hydro extractor machine
For more useful information,please don't hesitate to contact us.We are looking forward to build a long relationship with you!
Contact Person:Ms Sun
Service System
Pre-Sale Service
Before the order is confirmed, we will provide free laundry layout and all the consultation about the product.
Sale Service
1). In-depth Design
When the order is confirmed, we will communicate with the professional staff from the buyer's part and discuss the indepth drawing design. Besides, we will provide the whole laundry factory layout design for free. The design scheme will be including equipment installation drawing about foundation, water inlet, drainage, air input and output, compressed air and electricity.
2). Installation
All the machines are well tested before we delivery the machines to the operator
When the equipment arrive to the buyer, we will send our technical staffs to provide field installation guidance and any other necessary help to ensure proper and standard installation.
3). Testing
After installation, our staff will help our customer to test the machine and check all the technical index, function, specification of the machine. Also we will comprehensively eliminate all the possible human-caused damage or troubles during installation to make sure the machine will operate in its best condition.
4). Operation Training
Before the machine is put into use, we will provide operation training to ensure the operators from the buyer's part can work independently. The training includes proper operation, safe startup, smooth operation, proper washing, linen check and categorization and machine maintenance. Also we will help operators to learn the right way to save water, energy and emergent stop operation.
.
After-Sale Service
1) Full set of Installation and Operation Manual will be sent together with the machines ,and we are also able to offer online instructure
Operation Video will also be sent together with the machines
2) If you need we are able to send engineer to the work site to help you to train the operator and also to instruct the installation
Please feel free to contact us Contact Person :Ms Sun
>>
