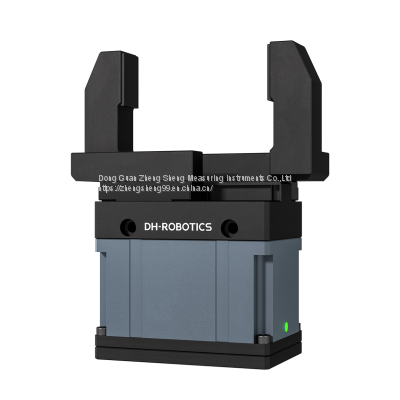

Servo-Electric Grippers PGI-140-80

Product Details

Product Description

Product Description
Product features
1.Long stroke
2.High protection level
3.Big load
Application scenarios
In industrial scenarios, the clamping, handling and assembly of heavy workpiece are mainly used in new energy, auto parts, mechanical processing, 3C electronics and other industries
Technical parameters
Hold power(one side) ：40~140N
Total trip ：80mm
Maximum recommended load ：3kg
Open/close time : 0.7s/0.7s
Position repetition accuracy : ±0.03mm
Running noise：＜50 dB
The weight of the : 1kg（Excluding the fingers）
The transmission way ：Precision planetary reducer+The gear and rack
size : 95mm×67.1mm×86mm
Runtime environment
Working voltage ：24V DC±10%
Ratted current ：0.5A
Peak current ：1.2A
Protection grade ：IP54
Recommended Work Environment ：0~40°C，85%RH The following
In line with international standards ：CE,FCC,RoHS

---
