Automatic 4 Cavity Pet Bottle Making Machine Pet Blowing Machinery

Product Description

Automatic 4 Cavity Pet Bottle Making Machine PET blowing machinery
What is Blow Molding Machine?
Blow Molding Machine is one kind of two step stretch type bottle making plant.
Blow Molding Machine is suitable to produce plastic bottles based on PET raw material.
Blow Molding Machine is widely used to produce carbonated soft drinks
bottles, mineral water bottles, cooking oil bottles, medicine bottles, cosmetic bottles, wide mouth Jars and hot filling juice bottles ect.
DEG-a4-2lL full automatic bottle blow molding machine can produce PET containers including the bottles for kinds
of wine, drink,soybean, vinegar, and pesticide (less than 2Liters) according to the different bottle shape and diameter. It has automobile system with high efficiency. The distant infrared ray heat pipe are used in the machine ,It has high pressure protection with the feature of precisely removing mould ,The machine has no noise ,It is easy to maintain ,It's the equipment for producing PET bottles.

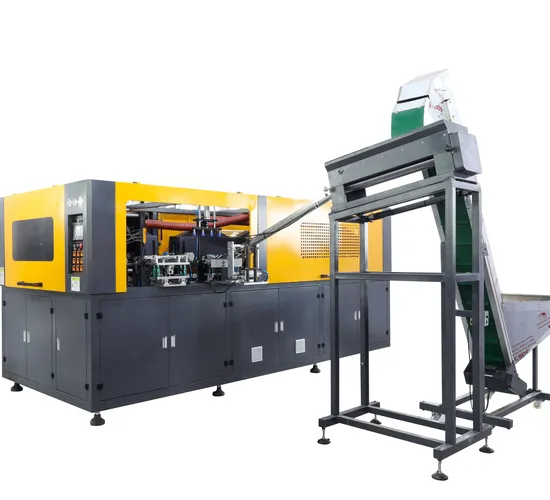

Detailed Photos

Product Parameters

MODEL	DEG-A4-2L
OUTPUT	Based on sample	5000PCS/H
CONTAINER SPEC.	Bottle body diameter	20mm-103mm
	Body height	50mm-340mm
	Neck size	15mm-38mm
MOLD	Cavities	4cavities
MACHINE POWER	Power Voltage	380v 50HZ
	Install power	46kw
	Actual power	25kw
AIR SUPPLY	Low air compressor	1.6m3/min 1.0MPa
	High air compressor	2.4m3/min 3.0MPa
	Air dryer	2.4m3/min 3.0MPa
COOLING WATER	Cooling water capacity	15L/min
MAIN MACHINE DIM.	L*W*H	4500*1900*2100mm
	Weight	4000KG
PREFORM LOADER DIM.	L*W*H	2000*1300*2400mm
	Weight	1200kg

Certifications

Packaging & Shipping

Company Profile

FAQ

Q1 :What kinds of product you supply?A1: Blow Molding Machine, Extrusion Molding Machine ,Preform Mould ,Cap Mould, Blow Mould,Filling Machine, Packaging Machine, Plastic Products, etcQ2: How to tell your enquiry ?A3: Contact us by email,phone call, fax,instant Messenger (Trade manager , Whats app, Skype) and let us know your inquiry.Q3: How to choose suitable machine?A3: Tell us your requirement, and we will advise you.Q4: Do you have technical support after we purchased your machine?A4: - We will provide video technical support,online support.- If you need,we can also arrange our professional technical to go aboard to your factory,they will help and teach you how to install and maintenance the machine.
After Sales Service

---
