VSI Sand Making Machine

Product Details

Product Description

Product Description
VSI Sand Making Machine
VSI Sand Making Machine
High Efficiency VSI Sand Making Machine Features:
The structure is simple, and the operating cost is low.
High efficiency, and low consumption.
It can be fine crush, crude grind material and it is easy to maintain.
VSI Sand Making Machine is slightly influenced by the humidity of material, and the max. humidity is 8%.
It is more suitable for crushing mid-hardness materials and high-hardness materials.
Its product is cubic, and the density of pilling up is high and the iron pollution is low.
The working noise is less than 75 decibels and dust pollution is light.

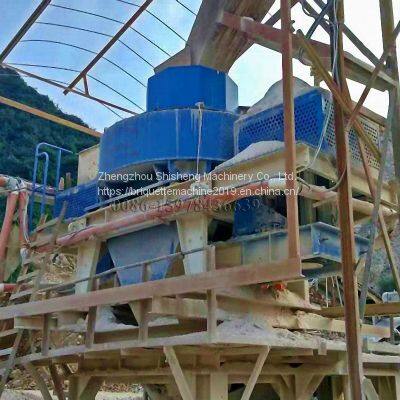

VSI Sand Making Machine Working Site
VSI Sand Making Machine Technical Parameter:

Model	Impeller Speed(r/min)	Max.Feed Size(mm)	Capacity(t/h)	Power(kw)	Weight(t)	Overall Dimension(mm)
PCL-600	2000-3000	30	12-30	2*30	5.6	2800*Φ1500*2030
PCL-750	1500-2500	35	25-55	2*45	7.3	3300*Φ1800*2440
PCL-900A	1200-2000	40	55-100	2*55	12.1	3750*Φ2120*2660
PCL-900B	1000-1450	40	65-130	2*75	13.6	3750*Φ2300*2090
PCL-1050	1000-1700	45	100-160	2*(90-110)	16.9	4480*Φ2450*2906
PCL-1250	850-1450	45	160-300	2*(132-180)	22	4563*Φ2650*3716
PCL-1350	800-1193	50	200-360	2*(180-220)	26	5340*Φ2940*3650

Model		HXVSI-7611	HXVSI-8518	HXVSI-9526	HXVSI-1140	HXVSI-1145	HXVSI-1150
Handling Capacity(t/h)	Waterfall and Central Feed	120-180	200-260	300-380	450-520	500-610	520-650
	Whole Center Feed	60-90	100-130	150-190	225-260	245-355	255-365
Maximum Feed Size(mm)	Soft Material	35	40	45	50	50	50
	Hard Material	30	35	40	40	45	45
Speed(r/min)		1700-1890	1520-1690	1360-1510	1180-1310	1150-1300	1150-1300
Double Motor Power(kw)		4P 110kw	4P 180kw	4P 264kw	4P 400kw	4P 400kw	4P 500kw
Shape Size(L*W*H)(mm)		3700*2150*2100	4140*2280*2425	4560*2447*2778	5100*2700*3300	5500*2700*3300	5500*2700*3300

Company Profile
Zhengzhou Shisheng Machinery Co., Ltd.
The factory is located in Zhengzhou Economic and Technological Industrial Development Zone, covering an area of more than 130 acres. It has two standardized heavy-duty industrial plants with 10,000 square meters, more than 150 large and medium-sized metal processing, riveting and assembly equipment, and more than 130 online employees, including There are more than 30 management cadres and engineering and technical personnel with intermediate and senior titles. The company has successively introduced advanced technologies and processes from the United States, Germany, Japan, Australia and other countries, established an internationally advanced production line and a first-class modern testing base, and established a sand and gravel machine research room, a grinding machine research room, and a research room for mineral processing equipment room. The company has rapidly grown into a production and sales base of mining machinery in China with scientific management methods, manufacturing processes for excellence, and innovative manufacturing concepts. Do your best to continuously improve and make it increasingly international.
