Product Features 1.Built-in high-precision algorithm, accuracy up to sub-micron level
6.Support ROI selection, one-key debugging, more convenient operation Products Description Specifications
| Model Number | Model | MV-DP2310-03H |

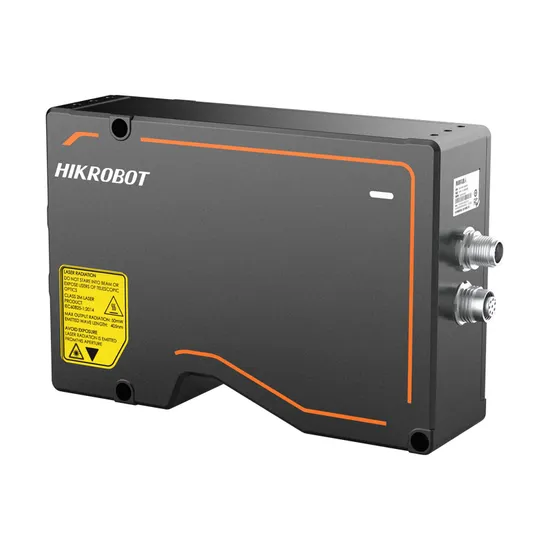

| Name | 3D laser profile sensor, depth measurement range 180-382mm, scan rate 700-10000Hz, Z-axis repeatability 1.2um, 650nm red laser |
| Performance | Single contour point | 2048 |
| Near field of view | 94 mm |
| Far field of view | 200 mm |
| Clearance distance(CD) | 140 mm |
| Measurement range(MR) | 200 mm |
| Linearity (±% of MR) | 0.01 |
| Resolution (X-axis) | 46.3 ~ 98.2 µm |
| Resolution (Z-axis) | 8.81 ~ 39.61 µm |
| Repeatability (Z-axis) | Data from 1.2 µm@ sensors testing standard blocks on an optical stage |
| Scan frequency | 700 Hz (at maximum measurement range) up to 10 KHz |
| Data type | Raw map, depth map, contour data, brightness map |
| Trigger modes | Soft trigger, external trigger, differential encoder trigger |
| Laser safety level | Class3R |
| Laser wavelength | 650 nm |
| Electrical Characteristics | Data interface | GigE |
| Digital I/O | 12-pin M12 interface provides power supply and I/O, 3 differential signal inputs (Line 0/3/6), 1 differential signal output (Line 1), 1 RS-232 |
| Power supply | 12 VDC, 1A or more |
| Typical power consumption | 12 W@12 VDC |
| Structure | Dimensions | 185 mm×125 mm×53 mm |
| Weight | approx 1210g |
| IP protection level | IP67 |
| Temperature | working temperature 0~45ºC, storage temperature -30~80ºC |
| General Specifications | Software | 3DMVS |
| Operating system | Windows 7/10 32/64bits (8G RAM, i5 processor) |
