Szgh Slant Counter Top Metal CNC Lathe Machine Linear Guide High Precision CNC Lathe Controller 3 Axis Turret Lathe CNC

Product Description

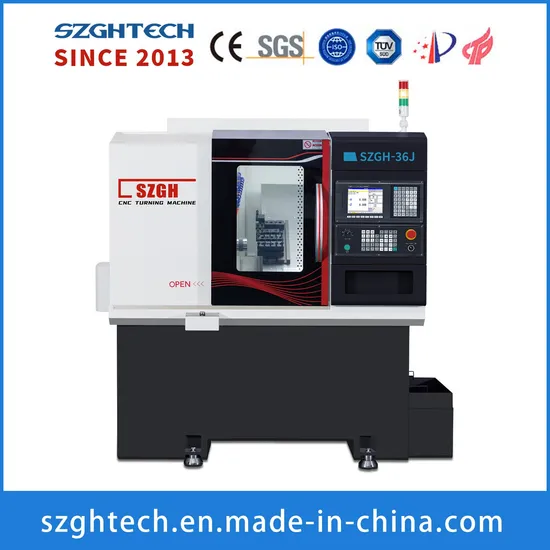

Product Overview SZGH-36J is suitable for batch production of copper, iron, aluminum and stainless steel bars within 35mm, and batch production of open-type forged parts with automatic feeding of pellets within 50mm. It can also be equipped with hydraulic chucks for single-piece production of parts within 250mm.Using multiple patented technologies such as high rigidity and anti-deformation structure, it is suitable for processing products with a single-side cutting amount within 2mm, precision tolerance within ±0.01mm, and smoothness within 1.6.It is widely used in hard rail CNC lathes, replaced by 46 large CNC lathes with small parts, etc., to achieve the effect of improving efficiency and cost-benefit ratio.
Features of Matched CNC Controller:
1)2-5 Axis Fully English Type CNC lathe controller;
2) 800x600 8.4 inch real color LCD displayer;
3) Electric Turret & Binary code turret,Max: 99 pcs tools;
4) Support ATC , Macro function and PLC function;
5) Max speed is 60m/min, feeding speed is 24m/min;
6) Adapted servo spindle can realize spindle continous position,rigid tapping,rigid screw processing;
7) High anti-jamming switch power(100V-240VAC 50Hz/60Hz -> 24VDC);
8) 64MB Memory , 56M user store room;
9) With USB interface,it supports file operation in flash disk,system configuration and software upgrade;
10) Position Control Mode:Pulse+Direction/AB Phase,Dual Analog voltage output of 0~10V;
11) 32 bits ARM microprocessor+FPGA Technology;
12) Basic I/O: 36X36, can be edited freely;
13) Cutter offset.
1. Who are we? We are based in Guangdong, which provides CNC total solutions&Robot arm. Such as welding Robot arms, painting robot arms, handling robot arms, grinding robot arms, and scara robot, which has independenttechnical teams and over 10 years of technical and overseas sales experience. sell to Eastern Europe(20.00%), Mid East(20.00%), Southeast Asia(15.00%), Southern Europe(10.00%), South America(8.00%), North America(5.00%), Western Europe(5.00%), Eastern Asia(4.00%), Central America(4.00%), Northern Europe(4.00%), Africa(3.00%), Domestic Market(2.00%).
2. How can we guarantee the quality?Always finishing a pre full testing by our professional engineers;
Always final 100% Inspection before shipment.
3. Where is our factory located? How can I visit there?Our factory is located in Henggang Street, Longgang District, Shenzhen City, Guangdong Province, China. You are warmly welcome to visit our factory.
4.What is the delivery time?The full series of standard models are in stock. For a customized one, it depends.
5.What services can we provide?1).Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
2).Accepted Payment Type:T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash, Escrow;
3).Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,
Korean, Italian, and so on.
6.What is the warranty period?After-sale service: The warranty period is 12 months. Meantime, we provide free online technical support. The technical response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.

7.How can I choose the most suitable machines?Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you.

8.Does your cnc support booting logo exchange?Yes, no problem.

---
