Heavy Duty Industrial Storage Rack Cold Warehouse Metal Racking

Product Description

Product Description Our pallet racking systems are designed for optimized warehouse space utilization, offering robust support for heavy loads and flexible configurations. Engineered with high-strength steel, these storage racks provide reliable performance in industrial environments, including manufacturing plants, distribution centers, and cold storage facilities.
Key Features
Maximize Space Efficiency
- Adjustable shelf heights and depths accommodate diverse pallet sizes.
- Sliding rails enable seamless access to stored goods.
Unmatched Load Capacity
- Rated for up to 5 tons per shelf (varies by model).
- Welded frame construction ensures stability under extreme weights.
Durability & Safety
- Galvanized or powder-coated steel resists corrosion and wear.
- Compliant with international safety standards (ISO 9001, CE).
Customizable Solutions
- Modular designs allow for expansion or reconfiguration as needs change.
- Optional accessories: safety guards, fire-resistant panels, and mobile bases.
Applications
- Industrial Storage: Warehouse pallet racking for bulk goods.
- Cold Chain: Temperature-controlled storage rack solutions.
- Automotive: Workshop storage for parts and machinery.

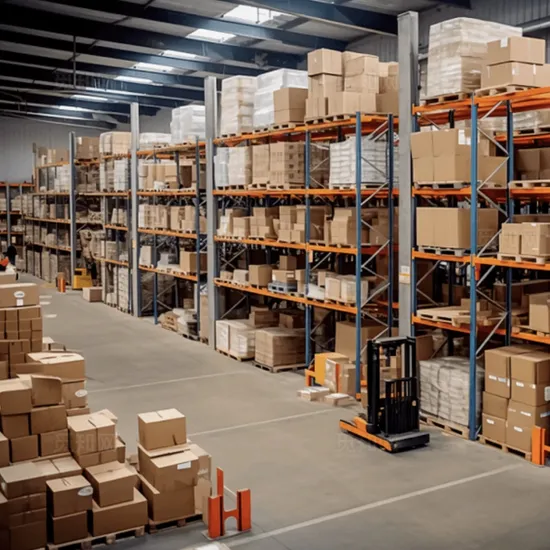

Detailed Photos
Product Parameters

Upright specification	Beam specification
90x70/100x70/120x95mm Thickness :1.8/ 2.0/2.5mm	80x50/100x50/120x50/140x50/160x50mm 100x40/120x40/140x40/160x40mm Thickness :1.5mm
Steel grade : Q235 /Q345 , material certification available
Color code: RAL5015 blue -upright / RAL2004 orange- beam
Loading capacity : up to UDL 3000kg/layer
Surface finishing : powder coated / galvanized

BOX BEAM LOADING TABLE
Beam length (mm)	80*50*1.5	100*40*1.5	100*50*1.5	110*50*1.5	120*40*1.5	120*50*1.5	140*40*1.4	140*50*1.5	160*40*1.5	160*50*1.5
1500	4286
1800	2977
1900	2672	3809	4535
2200	1993	2841	3382	4219
2300	1823	2599	3095	3860	3918	4665
2400	1674	2387	2842	3545	3598	4284
2500	1403	2000	2381	2970	3014	3598	4340	5160
2600	1297	1849	2201	2745	2787	3318	4010	4771
2700	1203	1715	2041	2546	2584	3077	3716	4425	5068	6033
3000	974	1389	1655	2065	2093	2492	3010	3585	4105	4887
3300	708	1010	1202	1500	1522	1812	2189	2610	2985	3555
3600	600	849	1010	1260	1279	1523	1839	2190	2508	2986
3800	540	762	907	1135	1148	1369	1658	1965	2251	2680
4000	485	687	818	1024	1036	1235	1550	1774	2032	2419

Manufacturing Process:
Packaging & Shipping
Factory & Workshop:
Certifications & Quality Assurance
- ISO 9001: Quality management system certified.
- SGS Testing: Verified load-bearing capacity and material safety.
- Customs-Compliant: Packaging meets international shipping standards.
Customer Testimonials
*"We upgraded our warehouse with wagon's pallet racking and saw a 40% increase in storage efficiency. The team provided excellent technical support!"*
- *John Doe, Logistics Manager, ABC Corp.*
---
Order Now
Contact us today for customized pallet racking solutions!

FAQ Q1:what's the lead time?
within15-25days days
Q2:where is your factory located?
Our factory is located in Jiangning District of Nanjing,which is near to Nanjing port or Shanghai Port.
Q3:what's your warranty time?
5 years warranty and lifetime insurance service of all racking products. any qualtity issues that caused by quality of products , we will provide free parts for replacement.
Q4:Are you able to provide installation service?
sorry , we dont supply installation service, but we could come up with a detail instruction & essembling layout, which will help your working team to install.
Q5: What's your material grade ?
Mild Steel Q235
Q6: How is the packing?
Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with Standard forklift truck or pallet jack
Q7: What's payment terms ?
TT or L/C at sight
Q8: What surface finishing of your products?
A. Electrol galvanized/Zinc plated: The zinc serves as a sacrificial anode( indoor storage)
B. Hot DIP galvanized: It forms a coating of corrosion-resistant zinc(indoor/outdoor and cold storage)
C. Powder coating: A type of coating that is applied as a free-flowing, Dry powder(indoor/outdoor storage)
Q9:What's the loading capacity?
In general, we have light duty(100~300kg) model, medium duty(400~800kg) model
And heavy duty(1000~1700kg) model available for your choice.
Q10: Is custom size available?
Yes, we do custom products and projects.

---
