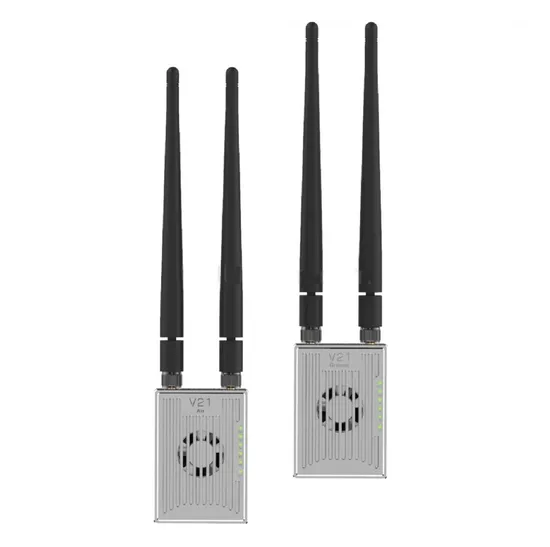

17km Video & Data Transmitter V21 Video Link HD Wireless 3in1 and RC

Product Description

Product Description
17KM video & data transmitter V21 Video link HD wireless digital data transmission link 3 in1 digital transmission and image transmission signals integrated with RC 17KM video & data transmitter V21 Video link HD wireless digital data transmission link 3 in1 digital transmission and image transmission signals integrated with RC , serial gateway function Simultaneous transmission of remote control signals, digital transmission signals, and image transmission signals Small size, easy to integrate, high sensitivity.
V21 Digital video and data transmission module is the wireless digital data link based on LTE wireless communication, adopting OFDM and MIMO technology. It can transmit telemetry data and real-time video stream, and has 2*SBUS ports, able to provide the control of the drone and the payload. RF modules of 800M, 1.4G, 2.4G frequency bands are integrated into one model, the frequency can be modified in the software and meanwhile, using the corresponding antennas, based on the environment. High integration greatly reduces the power consumption and the dimension of the product, which can satisfy the requirement of UAV, UGV, etc.

Parameters

Item	Parameters	Description
Frequency band	800MHz 1.4GHz 2.4GHz	806-826MHz 1427.9-1447.9MHz 2401.5-2481.5MHz
Power	-40-25dbm	adjustable
Transmission range	17km@LOS	Depend on environment
S-BUS port	2*S-BUS ports	NA
Serial port	1*serial port	Full duplex, baud rate adjustable
Latency	20ms	Transmission from Tx to Rx
Power supply voltage	7.4-12V	NA
Operation current	180mA	12v power supply
Bandwidth	1.4-20M	1.4M/3M/5M/10M/20M
Video input/output	LAN	Connecting IPC device/PC
Power supply interface	XT30
Antenna	2-4dB rod antenna
Dimension	85mm*55mm*20mm
Weight	100g(exclude antenna)
Operation temperature	-10ºC-+50ºC

---
