| Line Scan Cameras | |||||||||

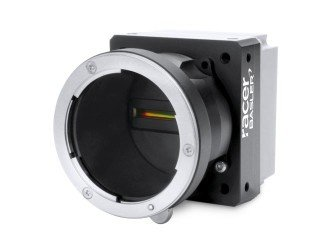

| Basler | |||||||||
| Line Scan Cameras Models | Sensor | Resolution [H×V] | Resolution [MP] | Sensor Type | Line Rate [KHZ] | Pixel Size [µm] | Sensor Format | ||
| GIGE Line Scan Cameras | |||||||||
| raL2048-48gm | DR-2k-7 | 2048 × 1 | 2k | CMOS | 51 | 7.0 | 14.3 | ||
| raL4096-24gm | DR-4k-7 | 4096×1 | 4k | CMOS | 26 | 7.0 | 28.7 | ||
| raL6144-16gm | DR-6k-7 | 6144 × 1 | 6k | CMOS | 17 | 7.0 | 43 | ||
| raL8192-12gm | DR-8k-3.5 | 8192 × 1 | 8k | CMOS | 12 | 3.5 | 28.7 | ||
| raL12288-8gm | DR-12k-3.5 | 12288 × 1 | 12k | CMOS | 8 | 3.5 | 43 | ||
| Cameralink Line Scan Cameras | |||||||||
| raL2048-80km | DR-2k-7 | 2048x1 | 2k | CMOS | 80 | 7.0 | 14.3 | ||
| raL4096-80km | DR-4k-7 | 4096x1 | 4k | CMOS | 80 | 7.0 | 28.7 | ||
| raL6144-80km | DR-6k-7 | 6144x1 | 6k | CMOS | 80 | 7.0 | 43 | ||
| raL8192-80km | DR-8k-3.5 | 8192x1 | 8k | CMOS | 80 | 3.5 | 28.7 | ||
| raL12288-66km | DR-12k-3.5 | 12288x1 | 12k | CMOS | 66 | 3.5 | 43 | ||
| Teledyne DALSA | |||||||||
| Line Scan Cameras Models | Resolution [H×V] | Line Rate [KHZ] | Sensor Type | Pixel Size [µm] | Interface | ||||
| Linea Series | |||||||||
| LA-CC-04K05B | 4096×2 | 48 | CMOS | 7.04μm | CameraLink | ||||
| LA-CC-08K05B | 8192×2 | 48 | CMOS | 7.04μm | CameraLink | ||||
| LA-CM-02K08A | 2048×1 | 80 | CMOS | 7.04μm | CameraLink | ||||
| LA-CM-04K08A | 4096×1 | 80 | CMOS | 7.04μm | CameraLink | ||||
| LA-CM-08K08A | 8192×1 | 80 | CMOS | 7.04μm | CameraLink | ||||
| LA-CM-16K05A | 16384×1 | 48 | CMOS | 3.52μm | CameraLink | ||||
| LA-GC-02K05B | 2048×2 | 26 | CMOS | 7.04μm | GigE | ||||
| LA-GC-04K05B | 4096×2 | 13 | CMOS | 7.04μm | GigE | ||||
| LA-GM-02K08A | 2048×1 | 52 | CMOS | 7.04μm | GigE | ||||
| LA-GM-04K08A | 4096×1 | 26 | CMOS | 7.04μm | GigE | ||||
| LA-GM-08K08A | 8192×1 | 13 | CMOS | 7.04μm | GigE | ||||
| LA-HM-16K07A | 16384×1 | 71 | CMOS | 3.5μm | CameraLink HS | ||||
| Linea ML Series | |||||||||
| ML-FC-08K07N | 8192×4 | 280(70×4) | CMOS | 5μm | CameraLink HS/Fiber Optic | ||||
| ML-FC-08K10T | 8192×3 | 280(93×3) | CMOS | 5μm | CameraLink HS/Fiber Optic | ||||
| ML-FC-16K02T | 16384×3 | 143(47×3) | CMOS | 5μm | CameraLink HS/Fiber Optic | ||||
| ML-FC-16K04T | 16384×3 | 141 | CMOS | 5μm | CameraLink HS/Fiber Optic | ||||
| ML-HC-16K10T | 16384×3 | 300 | CMOS | 5μm | CameraLink HS/CX4 AOC | ||||
| ML-FM-08K30H | 8192×4 | 280 | CMOS | 5μm | CameraLink HS/Fiber Optic | ||||
| ML-FM-16K07A | 16384×1 | 70 | CMOS | 5μm | CameraLink HS/Fiber Optic | ||||
| ML-FM-16K15A | 16384×1 | 140 | CMOS | 5μm | CameraLink HS/Fiber Optic | ||||
| ML-HM-16K30H | 16384×4 | 300 | CMOS | 5μm | CameraLink HS/CX4 AOC | ||||
| Linea Lite Series | |||||||||
| L2-GC-02K02B | 2048×2 | 25 | CMOS | 14μm | GigE | ||||
| L2-GC-04K01B | 4096×2 | 12.5 | CMOS | 7μm | GigE | ||||
| L2-GM-02K05B | 2048×2 | 50 | CMOS | 14μm | GigE | ||||
| L2-GM-04K02B | 4096×2 | 25 | CMOS | 7μm | GigE | ||||
| Linea HS Series | |||||||||
| HL-FM-04K30H | 4096×(128+64) | 300 | CMOS | 5μm | CameraLink HS/Fiber Optic | ||||
| HL-FM-08K30H | 8192×(128+64) | 280 | CMOS | 5μm | CameraLink HS/Fiber Optic | ||||
| HL-HM-08K30H | 8192×(128+64) | 300 | CMOS | 5μm | CameraLink HS/CX4 AOC | ||||
| HL-HM-08K40H | 8192×(128+64) | 400 | CMOS | 5μm | CameraLink HS/CX4 AOC | ||||
| HL-FM-16K15A | 16384×128 | 143 | CMOS | 5μm | CameraLink HS/Fiber Optic | ||||
| HL-HC-16K10T | 16384×(64+128+64) | 300(100×3) | CMOS | 5μm | CameraLink HS/CX4 AOC | ||||
| HL-HF-16K13T | 16384×(64+128+64) | 400(133×3) | CMOS | 5μm | CameraLink HS/CX4 AOC | ||||
| HL-HM-13K30H | 13056×(128+64) | 300 | CMOS | 5μm | CameraLink HS/CX4 AOC | ||||
| HL-HM-16K30H | 16384×(128+64) | 300 | CMOS | 5μm | CameraLink HS/CX4 AOC | ||||
| HL-HM-16K30H (BSI) | 16384×(128+64) | 300/150 | CMOS | 5μm | CameraLink HS/CX4 AOC | ||||
| HL-HM-16K40H | 16384×(128+64) | 400 | CMOS | 5μm | CameraLink HS/CX4 AOC | ||||
| HL-HM-32K40S | (16384+16384)×64 | 400 | CMOS | 5μm | CameraLink HS/CX4 AOC | ||||
