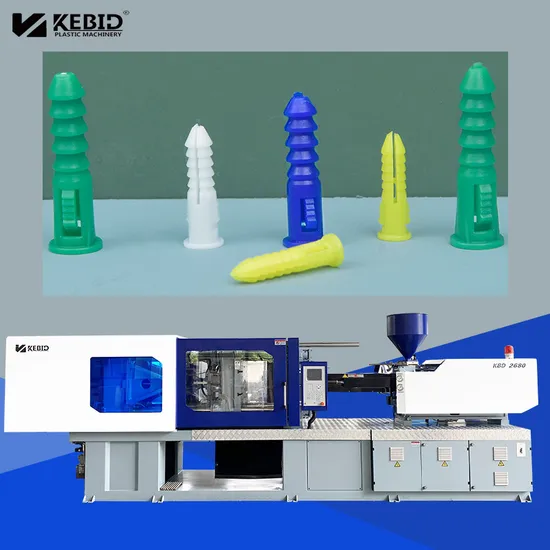

Plastic PP PC Products Making Servo Injection Molding Machine 298t

Product Description

Product Description



Specification

item	value
Plastic Processed	PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EPS, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP, Polylactic Acid
Condition	New
Style	Horizontal
item	value
Screw Diameter	65mm
Shot VolumeTheoretical	928cm³
Injection WeightPS	835g
Injection Pressure	143Mpa
Screw Speed	0-170rpm
Clamping Force	2980KN
Toggle Stroke	590mm
Space Between Tie Bars	615mm×615mm
Max.mold Height	630mm
Min.mold Height	230mm
Ejector Stroke	150mm
Ejector Tonnage	70g
Pump Moter Power	29Kw
Heating Power	20.2Kw
Machine DimensionL×W×H	6.3×1.6×2.25
Machine Weight	9000kg
Certification	CE ISO9001
Energy Saving	Servo Energy Saving System

Packing & Delivery
KEBID BRAND Plastic child Toy car shovel candy box injection molding machine Standard export packing
Company Profile

Ningbo HYSTAN(KEBIDA) Plastic Machinery Manufacturing Co. Itd., located in Chinese eastern seaside city of Ningbo, is a professional high-new technology injection machine manufacturing enterprise. The company, through continuous reform, innovation, carrying on scientific optimization management, sticking to purpose quality first, sincerity first, client first, now has a skilled professional technical team. The Independently developed HYT Series and KBD Series always pass strict test in processing of design, material purchasing, fittings assemblies and output of the machine. And the machine passes the test of International Testing Center. The main parameters, safety characteristics, hydraulic system and electronic system achieve top level in the industry. HYT Series and KBD Series injection machine have characteristics: beautiful figure and appearance, strong clamping force, high precision, low noise, energy saving and low power consumption. The company has dozens of sales network and service department in China. The machine also has been sold to Russia, Southeast Asia, Middle East, South America, Europe, and other Countries and areas, earning good reputation from clients in domestic and foreign market. The company sticks to manage concept People Oriented, Client Supreme, pursues first-class high quality output, and is willing to accompany New and Old Client, Colleague to create splendid future!
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2002,sell to Domestic Market(40.00%),South America(20.00%),Southeast Asia(20.00%),Africa(10.00%),Mid East(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Injection molding machine
4. why should you buy from us not from other suppliers?
professioanl manufacturer of plastic injection molding machine with more than 14-year experience, stable good quality, best price and service.injection molding machine,Plastic molding complete solution,high quality machine,high speed machine,Better choice.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,CPT
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Japanese,Portuguese,Arabic,French,Korean

---
