Product Details
Product Description
Product Description

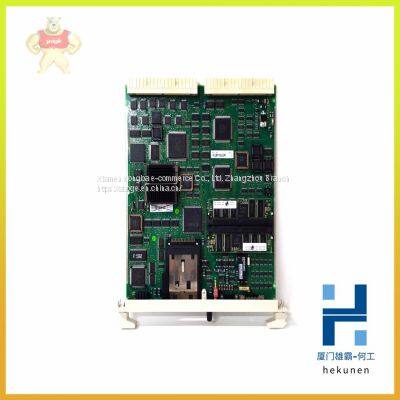

DSDP140A 57160001-ACT ABB Pulse meter board digital output board
DSDP140A 57160001-ACT ABB Pulse meter board digital output board
Our Email: 2235954483@qq.com
contact number:13313705507
contacts：HE
Modbus® RTU is an open master/slave protocol, and
can be easily implemented on serial interfaces.
Numerous automation systems have Modbus® RTU interfaces as standard or optional features, and are thus easily able to communicate with
the AC500 via its integrated COM1 and COM2 interfaces (RS232 or
RS485). The Modbus® is used not only in industrial applications, but
also in building installations, in energy optimization systems, for longdistance data transmission and for linking up operator panels.
Communication
By polling, i.e. the master transmits a request to the slave and then
receives the response. Both interfaces COM1 and COM2 can operate simultaneously as Modbus interfaces. The Modbus operating mode of an interface is set using the engineering tool.
Topology
Point-to-point via RS232 or multi-point via RS485. With RS232, a
maximum of one master and one slave is possible, while with RS485
one master and a maximum of 31 slaves can be operated. The maximum cable length is 15 m with RS232 and 1.2 km with RS485.
Data transfer
Max. 187.5 kB/s. Each telegram has a 16-bit CRC appended. The telegrams permit process data (input/output data) to be written and read,
either individually or in groups. The data are packed in the RTU format.
Transmission media
May vary. One widely used option is the RS485 bus physics, a twisted-pair, shielded cable with terminators.
Diagnostics
Detailed diagnostic messages for rapid troubleshoot-ing are shown on the CPU display.
>>
