Industrial Hollow Pin Conveyor Chain Systems

Product Description

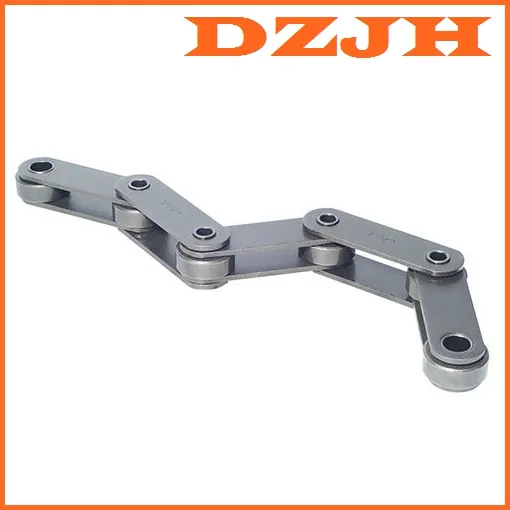

A Double Pitch Chain, Hollow Pin series chains are built to DIN / ASME / ANSI standards and are used for conveyor applications. Hollow pin chians have featuring pins with holes through them for mounting various attachments for conveyance.

DIN Chain No.	Pilch	Width between inner plates	Hollow pin dimensions			Bush diameter	Roller dimension				Plates dinensions		Ultimate tensile strength
	P	b1 min	d2 max	d3 min	L max	d4 max	d1 max	d7 max	d5 max	b11	h2 max	t/T	Q min
	m m	m m	m m	m m	m m	m m	m m	m m	m m	m m	m m	m m	KN
MC28	63	20	13	8.2	36	17.5	36	25	45	4.5	25	3.5	28
	80
	100
	125
	160
MC56	63	24	15.5	10.2	45	21	50	30	60	5	35	4.0	56
	80
	100
	125
	160
MC112	80	32	22	14.3	62.5	29	70	42	85	7	50	6.0	112
	100
	125
	160
	200
	250
	315
MC224	125	43	31	20.3	83	41	100	60	120	10	70	8	224
	160
	200
	250
	315
	400

DIN Chain No.	Pitch							Roller dimension
	P							di	d4	d6	d7	G
	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
FVC63	63.0	80.0	100.0	125.0	160.0			40.0	26.0	50.0	63.0	5.0
FVC90	63.0	80.0	100.0	125.0	160.0	200.0	250.0	48.0	30.0	63.0	78.0	6.5
FVC112	100.0	125.0	160.0	200.0	250.0			5S.0	32.0	72.0	90.0	7.5
FVC140	100.0	125.0	160.0	200.0	250.0			60.0	36.0	80.0	100.0	9.0
FVC180	125.0	160.0	200.0	250.0	315.0			70.0	42.0	100.0	125.0	13.0
FVC250	160.0	200.0	250.0	315.0	400.0			80.0	50.0	125.0	155.0	15.0
FVC315	160.0	200.0	250.0	315.0	400.0			90.0	60.0	140.0	175.0	18.0

DIN Chain No.	Width between inner plates	Pin diameter		Bush diameter	Pin length		Plate tickness	Plate depth	Ultimate tensile strength
	b1 min	d2 max	d3 min	d5 max	L max	Lc max	T max	h2 max	Q min
	mm	mm	mm	mm	mm	mm	mm	mm	kN/bf
FVC63	22.0	12.0	8.0	18.0	45.0	50.5	4.0	30.0	46.0/10454
FVC90	25.0	14.0	10.0	20.0	53.0	56.5	5.0	35.0	73.0/16590
FVC112	30.0	16.0	11.0	22.0	62.0	63.0	6.0	40.0	90.0/20454
FVC140	35.0	18.0	12.0	26.0	67.0	68.5	6.0	45.0	110.0/25000
FVC180	45.0	20.0	14.0	30.0	86.0	88.0	8.0	50.0	145.0/32954
FVC250	5S.0	26.0	18.0	36.0	97.0	103.5	8.0	60.0	215.0/48863
FVC31S	65.0	30.0	20.0	42.0	117.0	121.5	10.0	70.0	295.0/67044

---
