US$19,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.5~1.0m³
Certification
CE, ISO9001: 2000
Max Digging Radius
4490mm
Moving Type
Crawler Excavator
Transport Package
Wooden Case
Specification
4650*1550*3620
Product Description

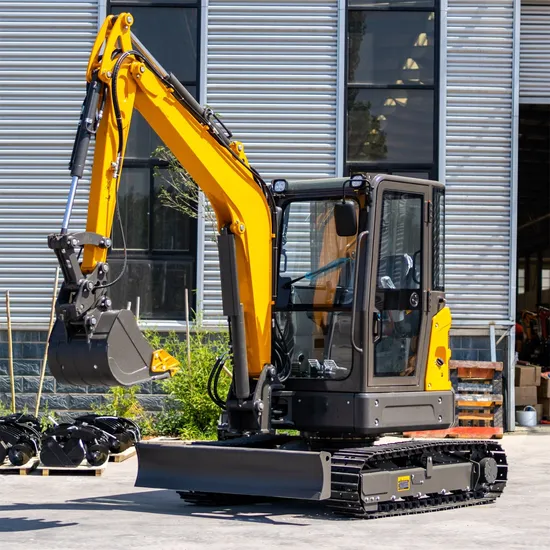

3.5 ton 3 ton hydraulic long boom mini excavator
The 3.5ton small excavator has a unique advantage because of its low price, light weight, convenient maintenance and repair. Due to its compact size, flexibility, versatility and high efficiency, it is very popular among users. Wide applicability. The small digging volume is small and flexible, which is very suitable for various pipeline excavation, foundation construction, public utilities and house maintenance operations in towns and cities. Small size and special design make it possible to work in an environment where large excavators cannot be constructed.
SPECIFICATIONS FOR 3.5 TON CRAWLER EXCAVATOR
|
Engine
| Engine model
| Kw/rpm
| YANMAR 3tnv88L
|
Physical Size
| total length
| mm
| 4650
|
total width
| mm
| 1550
|
track shoe length
| mm
| 2520
|
track shoe width
| mm
| 300
|
bucket capacity
| m3
| 0.09
|
bucket
| m3
| 0.09
|
Working range
| Max digging depth (mm)
| mm
| 3200
|
Max.digging height (mm)
| mm
| 4750
|
,Max dumping height
| mm
| 3620
|
Min radius of gyration
| mm
| 2190
|
Performance parameters
| rate power
| kw
| 21.4
|
ground pressure
| kpa
| 32.7
|
Max. Digging force
| kn
| 21
|
Max.climb ability
| .
| 30
|
Max walking speed
| km/h
| 2.5
|
>>
