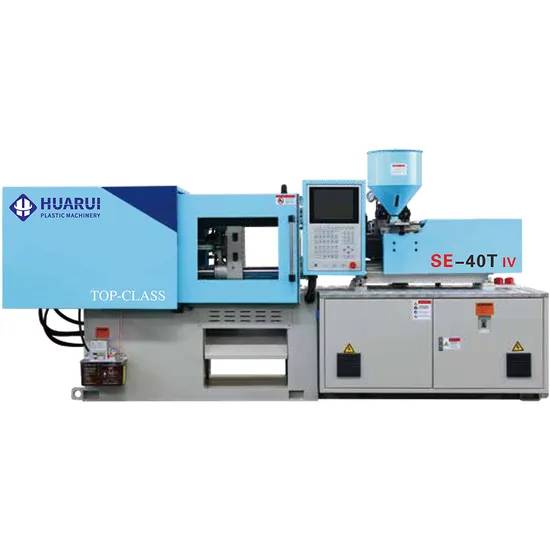

Horizontal Hot Runner Plastic Bottle Pet Preform Injection Molding Machine

Product Description

Horizontal Hot Runner Plastic Bottle Pet Preform Injection Molding Machine
Product Parameters

SE-40T IV Plastic Injection Molding Machine Information
Item		Unit		A			B
Screw diameter		mm		27			30
Theoretical shot volume		cm³		52			64
Shot weight (PS)		g		47			58
Shot weight (PS)		oz		1.65			2.04
Length/Diameter ratio		L/D		20.7			18.7
Injection pressure		Bar		2080			1850
Injection rate		cm³/sec		110			105
Max.screw speed		rpm		200
Clamping force		KN		400
Max.daylight		mm		420*420
Open stroke		mm		240
Space Between Tie-bars		mm		260*240
Min mould dimension		mm		100
Mould thickness range		mm		300
Ejector force		KN		25
Ejector stroke		mm		60
No.of ejector pins		unit		5
Max.motor power		KW		14
System pressure		MPa		175
Heater input power		KW		8.6
Oil filling capacity		L		100
Machine size		M		2.95*1.1*1.65
Net weight		KG		1700

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
Detailed Photos
