Surface Grinding machine for Blades

Product Description

Samples After Grinding.
Introduction.

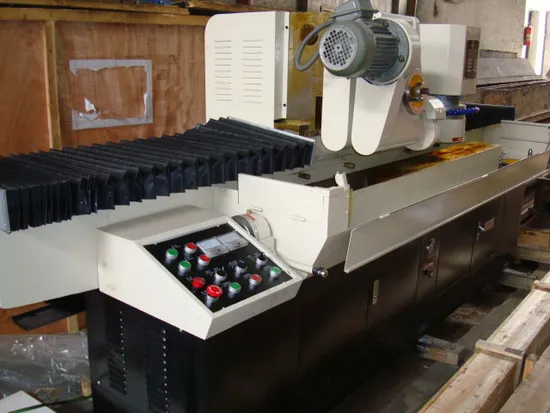

Model MSQ-C knife grinding machine is a grinding machine developed by our factory to meet the requirement of high-tech development. This knife grinding machine integrates both devices of knife sharpening and sharpening double grinding-head.
With the adoption of hydraulic automatic blade-feeding, traveling steepless speed regulation and rolling beeline guide track, it enables to change the angle of knife edge, thoroughly eliminate the waviness on paper-cutting cross section and prolong the using life of knife edge and blade. It is the updated grinding equipment at home and it can offer service to help printing factories to develop towards high-precision cutting level.
Main Specifications.

No.	Description	Specification & Type
		MSQ-1650C	MSQ-2200C
1	Max. grinding length	1650mm	2200mm
2	Grinding Wheel Speed	1400rpm
3	Size of polishing disc	140mmX6
4	Width of grinding blade	180mm
5	Rotation angle of worktable	0~± 90°
6	Moving speed of grinding-head	4.5-6.5M/minute
7	Max. sunction of magnetic disc	10T
8	Power of grinding motor	3KW
9	Power of pump	125W
10	Grinding wheel attached Specification
	A. Type and Code	White corundum(GB)
	B. Hardness	Soft 3, J(R3)
	C. Granularity	46#/60#
	D. Size of grinding wheel	200X100X100
11	Weight	1.7T	2.2T
12	Outside dimensions (Length x Width x Height )	2200x850x1450mm	2700x850x1500mm

---
