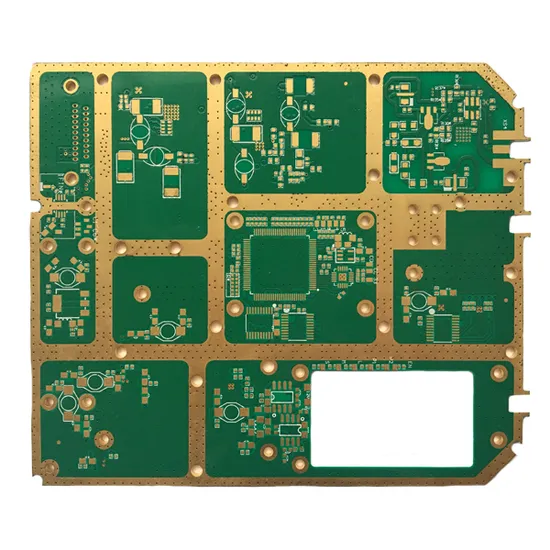

PCB Assembly 6 Layer 3oz High Density Interconnect Multilayer HDI PCB Circuit Board

Product Description

PCB Parameters:

PCB SIZE	170 x 64
BOARD TYPE	Double sided PCB
Number of Layers	2 layers
Surface Mount Components	YES
Through Hole Components	no
LAYER STACKUP	copper ------- 18um(0.5oz)+plate TOP layer
	FR-4 0.7 mm
	copper ------- 18um(0.5oz)+plate BOT layer
TECHNOLOGY
Minimum Trace and Space:	15 mil / 6.5 mil
Minimum / Maximum Holes:	0.3 mm / 3.5 mm
Number of Different Holes:	2
Number of Drill Holes:	35
Number of Milled Slots:	5
Number of Internal Cutouts:	0
Impedance Control:	no
Number of Gold finger:	0
BOARD MATERIAL
Glass Epoxy:	FR-4 Tg150ºC, er<5.4.IT-158, ITEQ Supplied
Final foil external:	1 oz
Final foil internal:	0 oz
Final height of PCB:	0.8 mm ±0.08
PLATING AND COATING
Surface Finish	Selective hard gold on pads 10 u"
Solder Mask Apply To:	TOP and Bottom, 12micron Minimum
Solder Mask Color:	Matt blue, KSM-S6189BLM1
Solder Mask Type:	LPSM
CONTOUR/CUTTING	Routing, v-cut
MARKING
Side of Component Legend	TOP
Colour of Component Legend	White, IJR-4000 MW300, Taiyo brand
Manufacturer Name or Logo:	Marked on the board in a conductor and leged FREE AREA
VIA	Plated through hole(PTH), minimum size 0.3mm.
FLAMIBILITY RATING	UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension:	0.0059"
Board plating:	0.0029"
Drill tolerance:	0.002"
TEST	100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED	email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.

PCBs Products:
Testing Procedures For PCB Board:
We perform multiple quality assuring procedures before shipping out any PCB board. These include:
- Visual Inspection
- Flying probe
- Impedance control
- Solder ability detection
- Digital metallogenic microscope
- AOI (Automated Optical Inspection)
PCB manufacture machine:

Shipping Method and Payment terms:
1. By DHL, UPS, FedEx, TNT using clients account.
2.DHL, UPS, FedEx, TNT forwarder of China.
3. We could ship the parcel by Russia Special Air Line for
Russian customer
(No TAX in your there, 3 - 10 days to Moscow , 15-20 days to other city)
4. By sea or air for mass quantity according to customer's requirement.
5. By customer's Forwarder
6.Payment By Paypal,T/T,West Union,etc.

PCB Manufacture Capability

Item	Manufacture Capability
Layers	1-20 Layers
HDI	2+N+2
Material Types	Fr-4, Fr-5, High-Tg, Aluminum Based , Halogen Free,
	Isola, Taconic, Arlon, Rogers,
Max. Panel Dimension	39000mil * 47000mil (1000mm * 1200mm)
Outline Tolerance	± 4mil (± 0.10mm)
Board Thickness	8mil-236mil (0.2 - 6.0mm)
Board Thickness Tolerance	± 10%
Dielectric Thickness	3mil-8mil ( 0.075mm-0.20mm)
Min. Track Width	3mil ( 0.075mm )
Min. Track Space	3mil ( 0.075mm )
External Cu Thickness	0.5 OZ - 10 OZ ( 17um - 350um)
Internal Cu Thickness	0.5OZ - 6OZ ( 17um - 210um)
Drilling Bit Size ( CNC )	6mil-256mil ( 0.15mm - 6.50mm)
Finished Hole Dimension	4mil-236mil(0.1mm - 6.0mm)
Hole Tolerance	± 2mil (± 0.05mm)
Laser Drilling Hole Size	4mil(0.1mm)
Aspect Ration	16: 1
Solder Mask	Green, Blue, White, Black, Red, Yellow, Purple, etc.
Min Solder mask Bridge	2mil(0.050mm)
Plugged Hole Diameter	8mil-20mil ( 0.20mm-0.50mm)
Beveling	30o - 45o
V-scoring	+/-0.1mm, 15o 30o 45o 60o
Impedance Control	Min. 5% General ± 10%
Surface Finishing	HASL, HASL(lead Free), Immersion Gold
	Immersion Silver, OSP, Hard Gold ( up to 100u" )
Certification	UL RoHS ISO9001: 2000 ISO14000: 2004 SGS
Testing	Flying probe, E-TEST, X-RAY Inspection , AOI
Files	Gerber Protel DXP Auto CAD PADS OrCAD Express PCB etc

Company introduction:
Fastline Circuits Co.,Limited has the most diversified printed circuit board technologies available, including Single-sided PCB, Multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, Flexible PCB, Heavy Copper PCB, Ceramic PCB, and PCB assembly and other special PCB boards.
We believe that the quality is the soul of an enterprise and provides time-critical, technologically advanced engineering and manufacturing services for the electronics industry.
Sound quality gains a good reputation for Fastline. Loyal customers has cooperated with us again and again and new customers come to Fastline to establish cooperation relationship when they hear of the great reputation. We look forward to offering high-quality service to you!
FAQ
Q1. What files should we offer?
For PCB: Gerber file is better, (Protel, power PCB, PADs file), for PCBA: Gerber file and BOM list.
Q2. How can you guarantee quality?
We always have a pre-production sample before mass production; and a final Inspection before shipment; Our PCBs are 100% test including Flying Probe Test, E-test and AOI.
Q3.What can I buy from you?
PCB, PCBA, multilayer pcb,FR4 PCB, and PCB assembly.
Q4. Why should I buy from you instead of other suppliers?
Fastline is a Leading PCB manufacturer in China. Serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.
Q5. Is my PCB files safe when I submit them to you for manufacturing?
Your files are held in complete safety and security. We protect the intellectual property for our customers in the whole process.
All documents from customers are never shared with any third parties. We are willing to sign NDA effect by customer side local law
and promising to keep customers data in high confidential level.
Q6. What payments do you accept?
We accept Wire Transfer(T/T), Western Union, etc.
Q7: How long does it take for a PCB quote?
Normally 12 hours to 48 hours as soon as receive internal engineer evaluate confirmation.
Q9: Do you have any minimum order quantity (MOQ) requirement?
No, we do not have MOQ requirement, we can support your projects starting from prototypes to mass productions.

---
