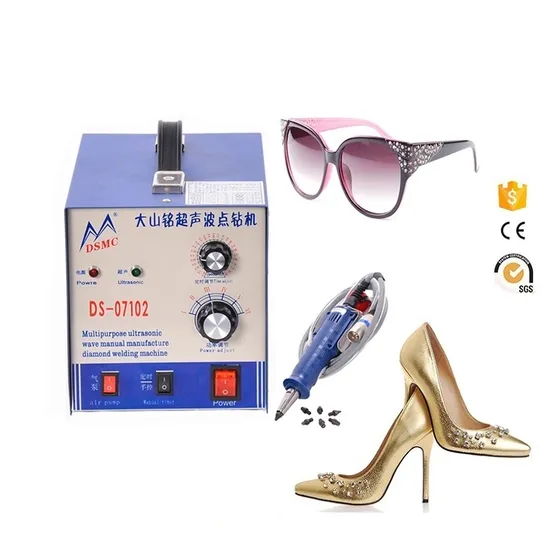

Ultrasonic Hot Fix Machine for Rhinestones

Product Description

Ultrasonic hot fix machine for rhinestone

Model	KT-07102	KT-RM01	KT-RM02
Product name	portable rhinestone machie	ultrasonic single disc rhinestone hotfix machine	ultrasonic double discs rhinestone hotfix machine
Voltage	110/220V	110/220V	110/220V
Power	80-150W	0.3KW	0.3KW
Diamond size	1-10mm	1-10mm	1-10mm
Speed	60-120pcs/min	110-220pcs/min	110-220pcs/min
Size	L268*W168*H198	L650*W800*H1080	L650*W800*H1080
Weight	7KG	80KG	88KG

Underwear ultrasonic hot fix machine: 1.mainframe machine
2.transducers
3.timing(senconds)
4.power adjustable
5.power switch
6.timing switch
7.air pump switch
8.working indicator
9.power indicator
10.dismounting tips
11.tip
12.ultrasonic control switch
13.output wire of ultrasonic signal
14.air intake tube( 180cm )
15.handle
16.different size tips(Seven tips :#6/ # 10/ # 12/ # 16/ # 20/ # 30/ # 40)
17. cooling fans
18.output interface of ultrasonic
19.interface of air intake tube
20.power interface
21.fuse box(1A)

Using step:
1. Pick up the machine, and connect well attached to match the power cord and ultrasonic output line, switch on.
2. Open the switch(Mainly used to control absorb drill), Open the time selection switch, Turn The Power Switch.
3. Power control, Mainly control ultrasonic output strength, the thicker the material the more difficult it is to welding, require the power higher
4. Take time to adjust to the 0.1-0.1 seconds, SS30 SS40 rhinestones approximately transferred to 0.2 to 0.5 seconds.
5.Right hand transducer, use forefinger and middle finger on the switch chip, the other three fingers to cooperate can hold.
6. Welding procedure: 1. pick up the rhinestone 2. Put it on the vertical paste position.
3. Press the contact switch. 4. Work light off. 5. Release the switch.
Advantages:

1. High-quality heat transfer machine, China factory wholesale price.

2. Various functions, size, color,model machine for your choice.

3. Size: suitable for ss6-ss40 rhinestones

4. Voltage: 110V and 220 are available

5. Accompany with CE certification

6. It's easy to operate hotfix machine.

7. Payment: T/T,Western Union,Paypal.

8. Delivery date: 1-2 days (exactly depend on your quantity)

9. MOQ:1 Set.

10. We have big discount from the DHL.UPS for shipping cost.

11. Good reputation & service.

12. You may save about 30% ordering from us.
Thanks for reading my information. Welcome to your any inquiry.Thank you.:)

---
