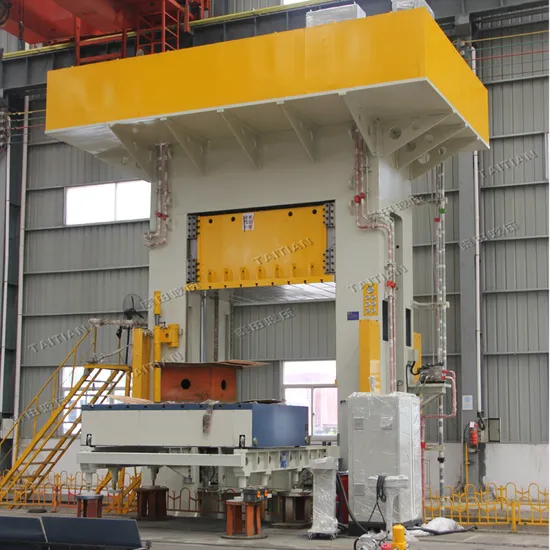

1000t Kitchen Utensils Deep Drawing Press Machine

Product Description

TAITIAN Hydraulic Kitchen Utensils Deep Drawing Press also called metal stamping press,metal forming press, it is used for deep drawing,stamping,punch of metal sheet for automobile ,kitchen utensils and household appliance industries.Taitian deep drawing press adopts Taiwan technology,the speed and pressure has been well adjutable by using servo driven control system.
Main Specification:

Part No.			TT-LM1000T/LS
Nominal Pressure		Tons	1000
Lifting Pressure		Tons	35
Max.Stroke of Slide		mm	1500
Max.Daylight		mm	2000
Working Table	L-R	mm	2800
	F-B	mm	2000
Slide Speed	Fast Approach	mm/s	400
	Pressing	mm/s	25-5
	Fast Return	mm/s	200
Approx.Total Power		KW	140
Approx.Overal Dimension		mm	6900×6100×8900

Main Features:
1) The Hydraulic Metalforming press is available up to 3000 Ton capacity as per customer's individual specifications and requirements. Each press is designed through Finite Element Structural Analysis and optimization to assure high strength and rigidity. High capacity press is preferred in H Frame structure.
2) The metalforming press is equipped with advanced and systemized Taiwan hydraulic system featuring oil leakage resistance, anti-vibration, low energy consumption, low noise level and easy maintenance.
3) 4 sides of brass guide rails of full stroke length not only ensure high accuracy but also allow easy adjustment of slide leveling.
4) The press fully meets CE safety requirements. Two side locking cylinders lock the slide when it reaches top position. And two sets of light curtain sensors are fitted in the front and rear that will stop the machine when human body carelessly enters the working area.
5) Mitsubishi PLC and 7 / 10 inch Taiwan Weinview touch screen make the machine easy for operation and specification adjustable.
6) Each press is manufactured under strict quality control management with good quality components from France, Japan, Germany, USA and Taiwan to assure the best performance and accuracy. H Frame deep drawing press has been awarded with CE Certificate.
Optional:
1. Moving Bolster / Die Change Trolley
2. T-slots on slide or bolster
3. Stamping Dampers for shock proof while stamping
4. Ejectors on slide or bolster
Main Components:
Applications:
Deep draw press is applied in production techniques, like deep drawing, stamping, cutting, bending, flanging of metal sheet.
Particularly applied in the following industries:
1) Automobile Industry: battery cover, vehicle body, chasis, axle housing, fuel tank, door, wheelbarrow tray and more.
2) Household Appliance Industry: Components for air conditioner, refrigerator, washing machine, microwave oven, electric cooker etc.
3) Kitchen Ware Industry: Stainless steel utensil, LPG cylinder, cooking bench, Aluminum Cookware.
Hydraulic Control System
Hydraulic control system takes high precision logic valving system as standard. Pipeline configuration is simple and clear, making maintenance easy. Pipeline connection way preferentially adopts flange joint to avoid oil leakage.
All motors, pumps and pipes are fitted based on advanced Taiwan technology to achieve shock-resistance.
Electric Control System
Electric box is featured with dustproof, waterproof and oil proof. Adopt Schneider electric units to ensure high quality. All units to ensure high quality. All units have labels, so it's clear to identify and easy to maintain.

---
