Buckwheat shelling machine-- buckwheat sheller

Product Details

Product Description

Product Description
Brief Introduction
Buckwheat processing (dry method) takes two steps: First, calibrate seeds to 7-8 grades (sizes). Then de-hull seeds separately by grades. The sheller applies disc hulling technique which can be adjusted for processing different sizes of buckwheat.
Buckwheat Grading Machine QF800
Buckwheat Shelling Machine TFQM400
Buckwheat Grading Machine QF800
Buckwheat goes to this machine and being calibrated to seven grades. Different sizes of buckwheat should be bagged or pre-stocked by silos and marked with numbers. Please noticed that the buckwheat should be cleaned before calibration.
I. Component
1. Input hopper 2. Bucket Elevator 3. Screens
II. Specifications
Power: 3.4Kw, (380V,3phase,50Hz)
Processing capacity: 1000kg/hr.
Length*Breadth*height: 11.8m×2.0m×2.6m
Buckwheat Shelling Machine TFQM400
The machine can de-hull buckwheat and separate shells from kernels. Those coarse bran can also be separated from kernels during this process. It applies dry method (seeds to be shelled directly with no thermal-treatment involved.)

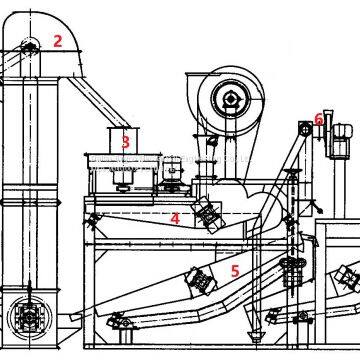

I.Component
1.Input hopper 2.Bucket Elevator
3. Hullers 4. Separator
II.Specifications
Power:6.44KW
Output: 200-250kg/hour min.
Yield of kernels:70-75％
Un-hulled seeds in kernels:0.5％ max.
Brokens in shells:0.5％ max.
Length*Breadth: 5.7m×2.8m
Height:3.5M
We can also re-design processing line for your special requirement. Following picture is the line we designed for COFCO(Dalian factory) with capacity 30T/D.
We have also some users in Finland, Japan, India and Croatia.

---
