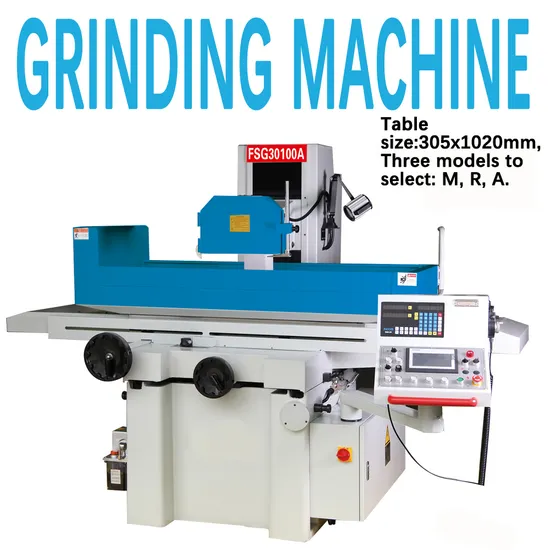

Saddle Moving Auto Surface Grinding Machine 30100

Product Description

•Precision grinding Built-in Electro spindle runs in maintenane-free, suport by preload high precision angular ball bearing.
•The machine bed, table and column are high grade casting piece, which supply strong base for grinding. The slideway is coat with TF wearable material and manual precision scrapped.
•Hardened steel guide way and rolling ball (made in Taiwan) structure is adopt on X axis, with smoothly motion, high accuracy and long life.
•High precision cross and vertical lead screws are made in Taiwan.

SPECIFICATION		Model
		FSG-30100M	FSG-30100R	FSG-30100A
Table Size	mm	305x1020
Magnetic Chuck Size	mm	300x1000
Max. Distance From Spindle Center To Table	mm	580
Table Cross Travel	mm	340
Table Longitudinal Travel	mm	1130
Max. Loading Capacity (Include Chuck)	kg	400
Speed of Table Longitudinal Move	m/min	5~25
Cross Motion
Intermittent Feed Rate	mm/t	0.1~8
Rapid Speed	mm/min	990
Feed of Handwheel	mm/div	0.02
Vertical Motion
Auto Down Feed Rate	mm/t			0.005-0.05
Rapid Down Speed	mm/min		650	480
Feed of Handwheel	mm/div	0.005
Spindle Rotating Speed	r/min	1450(50hz) 1750(60hz)
Grind Wheel Size	mm	350x40x127
Spindle Motor Power	kw	4
Floor Space	mm	4400x2200x1900
Gross Weight	kg	3200
Package Size	kg	2950x2220x2210

Standard Accessories		Optional Accessories
Operating Manual	Working Lamp	Balancing Stand	Permanent Magnetic Chuck
Manual Oil Pump	Coolant Tank	Magnetic Separator	Parallel Wheel Dresser
Balancing Arbor	Wheel Flange and Extractor	Paper Filter	2 Axis Digital Readout
Standard Grind Wheel	Wheel Dresser Stand	Dust Exhaust	Sine Vise
Leveling Wedge and Screw	Tool Box and Tools	Sine Magnetic Chuck	Radius Dresser

---
