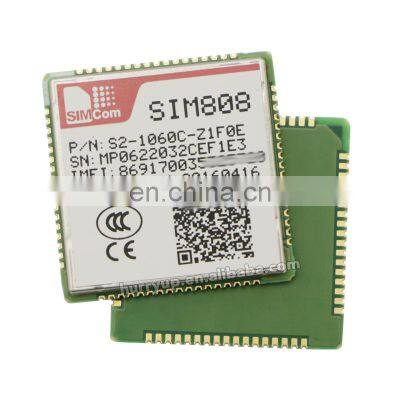

SIMCom SIM808 GPRS GSM GPS Module

Product Description

Product Description
DescriptionSIM808 GSM/GPRS+GPS Module● SIM808 module is a complete Quad-Band GSM/GPRS module which combines GPS technology for satellite navigation. The compact design which integrated GPRS and GPS in a LCC package will significantly save both time and costs for customers to develop GPS enabled applications.● Featuring an industry-standard interface and GPS function, it allows variable assets to be tracked seamlessly at any location and anytime with signal coverage.General featuresSoftware features•Quad-band 850/900/1800/1900MHz•GPRS multi-slot class 12/10•GPRS mobile station class B•Compliant to GSM phase 2/2+– Class 4 (2 W @ 850/900MHz)– Class 1 (1 W @ 1800/1900MHz)•Dimensions: 24*24*2.6mm•Weight: 3.3g•Control via AT commands (3GPP TS 27.007,27.005 and SIMCOM enhanced AT Commands)•Supply voltage range 3.4 ~ 4.4V•Low power consumption•Operation temperature:-40℃ ~85℃•0710 MUX protocol•Embedded TCP/UDP protocol•FTP/HTTP•MMS•POP3/SMTP•DTMF•Jamming Detection•Audio Record•SSL•Bluetooth 3.0 (optional)•TTS CN(optional)•Embedded AT (optional)Specifications for GPRS DataSpecification for GPS•GPRS class 12: max. 85.6 kbps (downlink/uplink)•PBCCH support•Coding schemes CS 1, 2, 3, 4•PPP-stack•USSD•Receiver type-22 tracking /66 acquisition -channel-GPS L1 C/A code•Sensitivity-Tracking: -165 dBm-Cold starts : -148 dBm•Time-To-First-Fix-Cold starts: 32s (typ.)-Hot starts: <1s-Warm starts: 3s•Accuracy-Horizontal position : <2.5m CEPInterfacesCompatibility•68 SMT pads including•Analog audio interface•PCM interface(optional)•SPI interface (optional)•RTC backup•Serial interface•USB interface•Interface to external SIM 3V/1.8V•Keypad interface•GPIO•ADC•GSM Antenna pad•Bluetooth Antenna pad•GPS Antenna pad•AT cellular command interfaceCertifications• RoHSREACHCCCRCMCE(RED)ICASAFCCWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC

---
