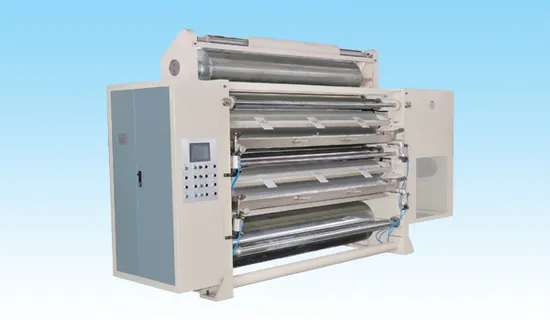

Duplex Gluer, for 5-Layer Corrugator Line

Product Description

Duplex Gluer Machine 1) GM Duplex Gluer Machine special line on the surface of the glue applicator roller, roller surface hard chrome-plated, even glue supply, low cost. 2) The glue applicator driven by frequency conversion motor with inverter. Keep the synchronization for glue applicator roller and double baker facer machine by inverter. And independent running.
3) Adjustment for gap between glue roller and doctor roller by electric or manual are optional, Digital read out for the gap between glue roll and doctor roll is optional.
4) Press roll moves up and down by pneumatic. Gap mini-adjustment by electric.
5) Self-circulating glue supplying system to avoid glue hardenning and to control glue quantity Keeping the glue good quality and saving.
6) Press roll and press bar are optional.
3/5/7-layer Corrugated Cardboard Production Line 1) WJ-I/II/III 3/5/7-layer Corrugated Cardboard Production Line consists of the following machines, Electrical Shaftless Mill Roll Stand, Single Preheater, Fingerless type Single Facer, Overhead Conveyor Bridge, Duplex Preheater, Duplex Gluer, Double Facer, Lift-down Thin Blade Slitter Scorer, NC Cut-off, Right-angle Conveyor & Stacker, etc.
2) Kraft Paper Reel to be corrugated and glue by Corn Starch Gum, continuously produce, slit, crease & cut to 3/5-layer Corrugated Cardboard Sheet, and then conveyor, stack and output.
3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.
4) It is the ideal and perfect equipment for corrugated carton box factories.

Max Effective Width	1100~2200mm
Max Paper Roll Diameter	1500mm
Max Paper Roll Weight	3000kg
Corrugating Roller	Φ280~405mm, 48CrMo alloy steel, hardness HRC58°-60°
Min Slitting Width	150mm
Cutting Length	500~9999mm
Design Speed	100~200m/min
Heating Method	Steam Heating
Economic Working Speed	80~160m/min

---
