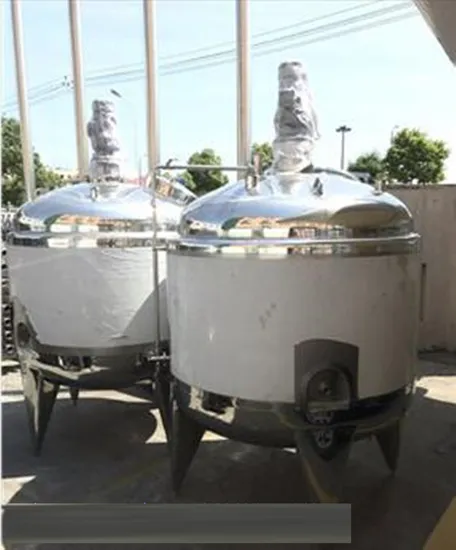

Stainless Steel Steam Electric Heating Liquid Mixer Mixing Equipment

US$2,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
KQ-100L to KQ10000L
Application
Liquid with Suspended Solids, Powder, Viscous Fluid, Liquid, Granules, Liquid
Application Area
Chemical
Certification
CE, ISO
Condition
New
Heating Method
Electric Heating
Main Material
Stainless Steel
Mixing Drum Shape
Circular Groove
Stirring Type
Forced
Warranty
One Year
Working
Convection Mixer
Name
Stainless Steel Steam Electric Heating Liquid Mixe
Material
Stainless Steel 304 / 316
Heating
Steam Heating, Electric Heating
Capacity
100L to 10000L
Speed of Mixer
18 to 2900rpm
Usage
Chemistry & Pharmacy Industry
Motor Brand
Siemens, ABB, Sew
Voltage /Hz /Phase
Make to Your Order
Surface Treatment
Inside Mirror and Outside Polished
Spare Parts
Available
Packing
Wooden Box
MOQ
1set
OEM
Yes
Control Box
Yes
Delivery
10 to 25 Days
Mixer Type
Double Ribbon Mixer
Layout Type
Verticle
Operating type
Continuous Operating
Transport Package
Wooden Box
Specification
Based on your order
Trademark
KQ
Origin
China
HS Code
8479820090
Production Capacity
100 Units / Month

Product Description

Stainless Steel Steam Electric Heating Liquid Mixer Mixing Equipment
Factory Scale:
1) Located in: Zhejiang, China
2) Factory Area: 5000SQ.M
3) Employees: 37
4) Production Ability: 100 Pieces/M jacketed tank		 Advantages:
1) Certificates: CE ,ISO, 3A
2) Warranty: 12 months
3) OEM/ODM:can design, exploitation and manufacture by CAD software and drawing.
4) Testing&QC: pressure test and material test
Production Line
1) Engineers: 3
2) Workers: 20
3) Welding: 4
4) Polishing: 3
5) Testing: 2
6) Packing: 2		 Delivery Time:
1) Material Preparation Time: 2 days
2) Metal Processing Time: 7-10 days, based on actrual quantity
3) Test & Packaging Time: 1 day

mixing tank are widely applied in the beverage, food, dairy, pharmaceutical, chemical and process industries used as blending tank, buffer tank, melting tank, high shear mixing tank and emulsifying tank, which cleanable to sanitary standards .

Product Features:
1) Material: SUS304/ SUS 316L
2) Layer: Single layer/ double layers/ three layers
3) Power: 0.55~55KW
4) Capacity: 100L~20,000L
5) Voltage: 110V~480V, can be customized
6) Heating Type: electric/ steam heating
7) Polish: mirror polish inside and outside
Description of high speed mixing tank:
made of sus304 stainless steel used for mixing sugar,mixing milk powder,emulsifier etc. agitator 2900rpm
this mixing tank is one of the most advanced mixing machines in China presently,
This tank has high speed agitator with the sealing pair of rotor and stator.

this tank is totally made of sus304 stainless steel,
with 60mm thick PU as heat insulation, which can keep warm of product inside of the tank;
inner shell 3mm,outer shell 2mm;
flat removable cover;
with inlet and outlet of water;
with digital show thermometer;
with product outlet at bottom;
high speed agitator(shearer) mounted from top to near of the bottom;
with 4 legs as supporters.

widely used to melting sugar, powder milk, and other dissolvable additives.
it is very popularly used in the milk and juice and other food production lines .
Stainless Steel Steam Electric Heating Liquid Mixer Mixing Equipment
