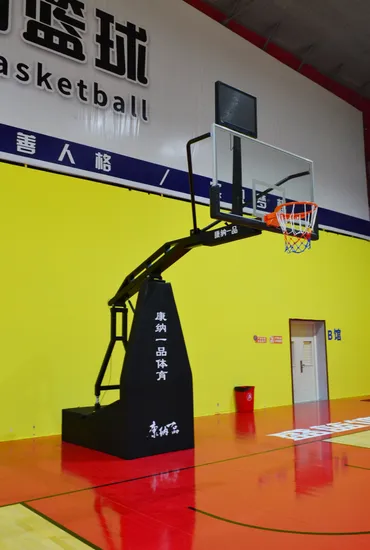

Fast Assembly Foldable Basketball Hoop Stand for Bulk Orders

Product Description

Specifications

Extension Arm Length	2250mm
Rim Height	3050mm
Backboard Dimensions	1800×1050mm
Backboard Material	Aluminum Alloy Frame, Tempered Glass
Frame Material	Q235 Steel
Base Dimensions	1950×1100×770mm (front) / 470mm (rear)
Net Weight	Approximately 840Kg/pair (excluding counterweight)
Counterweight Requirement	≥536KgA

Materials and Design
1. Extension Arm: Made of 200×100×3.0mm, 150×100×3.0mm, and 100×50×2.0mm rectangular tubing, welded together.
2. Main Post: Made of 200×100×3.0mm, 120×60×2.75mm, 100×50×2.0mm, and 40×20×2.0mm rectangular tubing, welded together.
3. Base: Made of 3.0mm thick sheet metal, welded together with internal reinforcement structures.
4. Rear Support Rod: Made of 70×70×2.0mm rectangular tubing, welded together.
5. Upper Support Rod: Made of φ42mm×2.75mm round tubing, bent into shape with an automatic tube bending machine.
6. Fasteners: All fasteners are treated with high-corrosion resistance Dacromet coating to extend service life.

Manufacturing Process
1. Cutting: Products are cut using fully automatic laser cutting equipment to ensure precision and consistency.
2. Welding: CO2 gas shielded welding is used for tight, firm, and aesthetically pleasing joints.
3. Surface Treatment: The surface undergoes shot blasting with 0.8mm diameter steel shots to thoroughly remove rust and create a smooth surface, enhancing powder coating adhesion and ensuring a fine coating texture.
4. Powder Coating: The product is treated with electrostatic powder coating, ensuring strong adhesion, coating thickness of 90μm - 150μm, 2H hardness, uniform and bright color, weather resistance, and anti-aging properties.
5. Safety: The entire machine is free from hooks, pinch points, shear points, and clamping areas.

---
