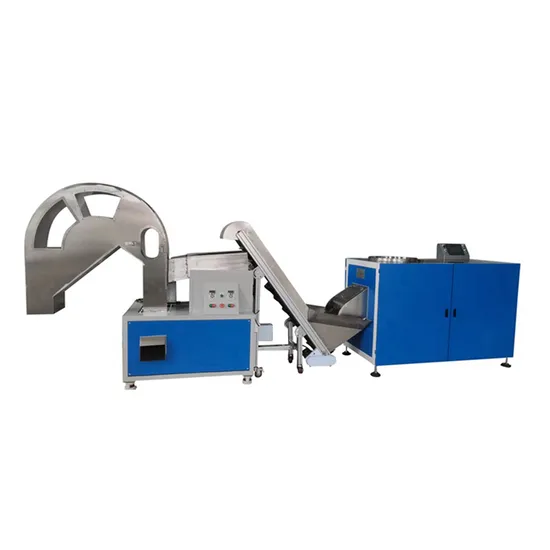

Spin Trim Type Rubber Rings Deburring Machine with Vibrating Separator

Product Description

Automatic Rubber Flash Removing Machine, Rubber Deburring Machine Supplier In China
SPECIFICATIONS

Specification	Spin Trim Rubber Deflashing Machine
Model	PG-ST-350
Power Supply	5.5KW 3ph 380V
Size	1890*660*1320mm
Weight	320kg
Gas supply	0.4mpa-0.6mpa
Wheel Speed	0-6000rpm
Process efficiency	about 2kg per min
Batch Time	30-50seconds/ batch
Flashes Separating	Vibrator Separating
Usage	All kinds of O rings or Gaskets
Operation Mode	Touch Screen

Vibrator Specification
Power supply	140W, 3ph 380V
Size:	1350*560*550mm
Weight:	90kg
Vibrator Outlet	Two outlets mouth, one for big flash, another for small flashes
Screen Plate Specification
Size	850*400*Thickness1mm
Function	Filtering flashes by two level screen plate
Mesh hole size	Ф2----Ф55mm

SPIN TRIM RUBBER DEFLASHING MACHINE PRODUCT DESCRIPTION
Design Purpose
Remove waste edges/flashes of rubber parts automatically and in a cost-effective way.
Operation Principle
This machine using centrifugal principle, the inner cylinder with automatic control of high-speed rotating disk driven rotating rubber products constantly collide, making edges and rubber products separated from each other, so as to achieve the function of removing burrs.
Applications
All kinds of rubber parts for a wide range of industry fields.
Ideal for use in the automotive, oil and gas, aerospace, medical, electronics, and general rubber sectors.
Product Features
1.PLC & HMI control, a plug-and-play equipment, 7.5inch touch screen, user friendly operation panel.
2.Not freezing, no need liquid nitrogen, no molds requirement, only basic labor and electricity, very low manufacturing costs
3.Extremely high output, average as 15~20 workers at the same working time, millions of products can be finished per day
4.Ideal for the effective deflashing of small to medium size rubber parts, especially for the O rings.
5.Divided space room for filling & operation respective, realizes a continuous production
6.Patented Cutting Technology for Closet Wet Trim. A safe, affordable and automated process
7.Automatic Self-Lubrication System for Non-stop Trimming
8.High power and speed motor to ensure reliable performance and stable running.
