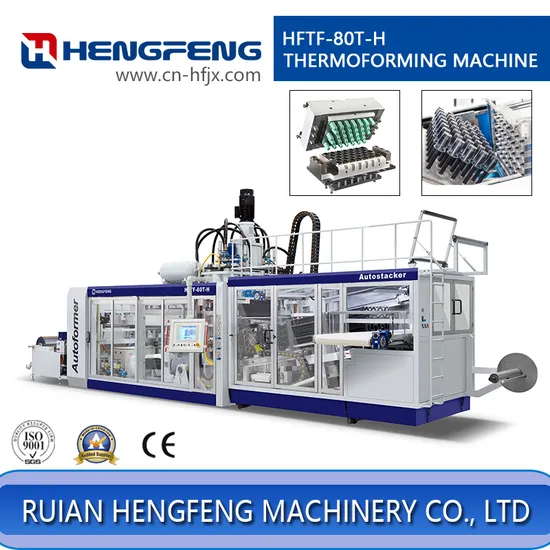

75K Plasticthermoforming Machine Plastic Cup Making Machine Automatic Cup Thermoforming Machine/PP Mineral Water/PLA Pet Cup Making Machine

Product Description

Plastic PP/Pet/PLA Cup Tilting Mould Thermoforming Making Machine
Applicantion:
Water Cup Making Machine are mainly produce upscale plastic containers like cups, bowls, square boxes etc. It is suitable for PP. HIPS. PVC and PET material.
Design Features:
In-mould Cutting
High accuracy and high yield products
Pick-up stacking system for more sanitary and save labor
Servo motor for plug assist and sheet feeding system
Two -station unwinder system
Rapid mould changing device
Mould automatic memry system
PLC design with easy operation.
Main Specification:

1- Max. Forming Area	762×470mm(30"×18.5")
2- Max. Forming Height	≤130mm
3-Mold Clamping force	500KN
4-Sheet Width	Max 820mm; Min 650mm
5-Sheet Thickness	0.4mm-2.0mm
6-Heater Specification	Ceramic Heater up and down 70/80kw
7-Heater Control	Omron Temperature module and PLC match with control
8-Forming Method	Air pressure forming & driven by Cam
9-Operation Method	Fully automatic with touch screen control
10-Material Feeding	Servo Motor 4.4kw
11-Main motoer power	11kw
12-pushing cup motor power	1.3kw
13-stretching servo motor power	11kw
14-Max. Sheet Rolling Diameter	Φ1500mm
15-Air Pressure	0.7-0.85mpa
16-Water Consumption	50L/min
17- Air Consumption	4000L/min
18- Max.No-Load Speed	40 Cycles/min
19- Power (Three Phase Four Wire)	380V,50Hz,3Phase
20- Max installed power	200kw
21- Machine Weight	14500kg
22- Machine Dimension	14500×3850×4250mm

WELLE CNC Machine FAQ:
1. Q: Are you a factory or trading company?
A: We are a factory and giving you the quickest reply in 24 hours.
2. Q: What's your company mainly in?
A: We are mainly produce Plastic Extruder, Vacuum Forming Machine for over 10 years.Other machines have included machines in production line, such .as thermoforming machine and pp and ps extruder .
(we can produce total production line.)
3. Q: How's your strength of your company?
A: Has a group of senior technical personnels , strong technical force, we have the whole running system, including design, development ,production, installation, service. One year quality guarantee, life-time service.
4.Q: If your company has passed some certificates?
A: Yes, we have passed CE, ISO.

---
