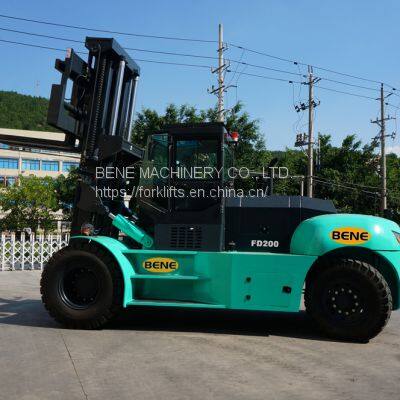

Product Details
Product Description
Product Description
Engine: Cummins Engine, low oil consumption, high quality turbocharged engine, good power performance, big torque reserves, has strong power, energy conservation and environmental protection
Steering axle: adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable
Transmission & torque convert: imported technology, reliable performance, convenient maintenance, smooth transmission, and convenient operation
Control system: pilot valve control device to make the work efficiency and reduce drivers’ labor intensity
Hydraulic system: double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance
Pipeline: high pressure oil line use the famous brand, impact resistance, wear resistance and long service life
Tyre: sino-us joint brand, resistant to wear and sting, high strength tyres, bear heavy loaded - safe and reliable
Fork: use Cascade Fork, with hydraulic fork positioner, easy operation and reduce drivers’ labor intensity
Mast: box-type internal-external mast, special all-round roller bearings, increase lifting performance
Speciflcation
General
| Manufa cture |
| BENE |
| Manufacture |
| FD200 |
| Power type |
| Diesel |
| Rated loading capacity | Kg | 20000 |
| Load center | mm | 1200 |
Dimensions
| Lift height | mm | 3000 |
| Free lift height | mm | 195 |
| Fork size | mm | 2000×200×120 |
| Fork distance | Min./Max. | mm | 680/1700 |
| Mast tilt anglc | Front/After | deg | 8/12 |
| Front overhang | mm | 1000 |
Overall dimensions
| Overall length | mm | 7120 |
| Overallwidth | mm | 2450 |
| Mast lowered height | mm | 3200 |
| Mast extended height | mm | 4825 |
| Overhead guard height | mm | 3370 |
| Turning radius | mm | 5800 |
| Min.right angle aisle width | mm | 3712 |
| Performance | No load/Full load | Traveling Speed | km/h | 40/30 |
| Lifting spead | mm/sec | 350/300 |
| Max.grade abnlity | % | 25 |
| Max. Pull force(full load) | KN | 125 |
| Self weight | kg | 30000 |
Chassis
| Tread | Front |
| 12.00-24×4PR |
| Rear |
| 12.00-24×2PR |
| Treadwidth | Front | mm | 1818 |
| Rear | mm | 1850 |
| Wheelbase | mm | 3500 |
| Min.Ground clearance (No load/Full load ) | Mast | mm | 570/560 |
| Frame | mm | 570/560 |
Drive unit&control
| Battery | V/AH | 24/100×2 |
Engine
| Manufacture |
| WD10G220E11 |
| Manufacture |
| WEICHAI |
| Rated power | Kw/rpm | 162/2300 |
| Rated torque | N.m/rpm | 1460/2400 |
| NO.of cylinder |
| 6 |
| Bore×Stroke | mm | 126×130 |
| Displace ment | L | 9.726 |
| Fule tank capacity | L | 300 |
Transmissions
| Type | L | Hydraulic |
| Shift Front/rear |
| 2/1 |
>>
