Ea230 Manual Lifting Pneumatic Mixer Can Stri Medicine Liquid, Motor Oil 50L

Product Description

Product Description

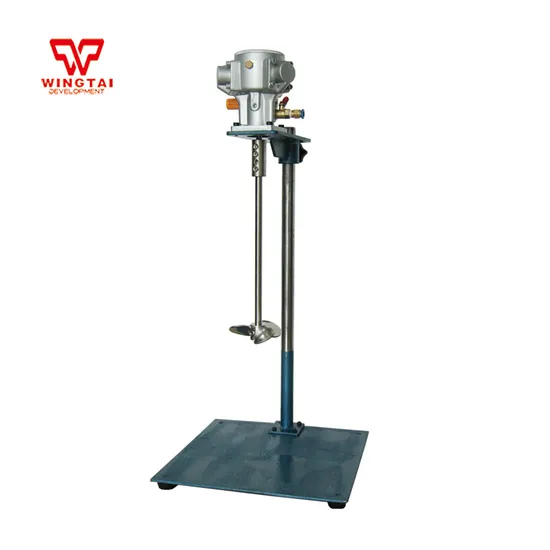

EA230 manual lifting pneumatic mixer, is a horizontal plate on a single pillar to move up and down to complete the lifting function, fixed with screws against the pillar, and with a fixed bucket clamp to achieve the bucket in the mixing process to avoid displacement. Air motor inlet ball valve to control the speed of air motor speed (to achieve stirring speed controllable).
Air Motor features:
1. Not heated with long time working, long performance life, explosion-proof, not effected by high temperature and shake.
2. Speed stepless adjustment; adjust air pressure to control the rotate speed.
3. Can be worked with full with lower temperature.
4. Load overweight or stuck when the motor does not heat damage, and can load start.
5. Humid or dusty places can still be used normally.
Optional air motor suggestions: the case of certain horsepower, torque, slow speed applications that require large load; torque is great for a small speed fast rotation.
ApplicationApplication range: mixing paint, ink, oils, resins, asphalt, molasses, liquid medicines, motor oil, paints, dyes and other materials.
Product Parameters

Max mixing volume:	50L
Motor Type:	EMH010 (option according to viscosity and volume)
Rated Power:	0.1HP (option according to viscosity and volume)
Rated air pressure:	0.6 MP
Rated speed:	0-1100 switch (can be variable speed)
Rated torque:	0.64N.m
Rated Air Consumption:	180L/min
Mixer Paddle:	A~ S (option according to viscosity and volume)
Motor Weight	1.8kg
Shaft length:	Φ12 * 230mm (according to viscosity and volume to option)
