Dts60 Precision Metal Sheet Slitting Cutting Machine

Product Description

Product Description

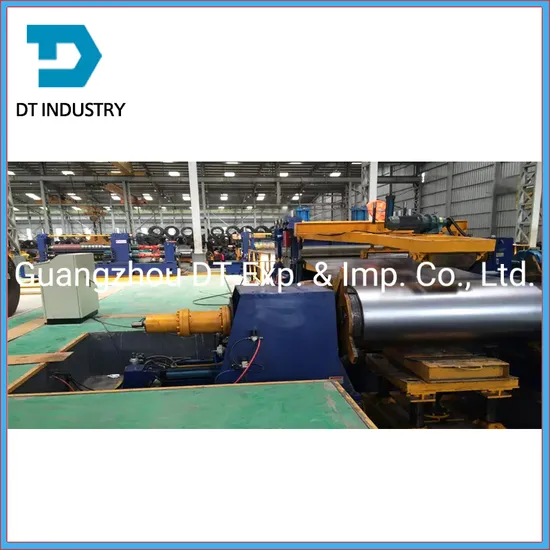

DTS60 Slitting Line Machine
When the user steel coil thickness within 6mm, specification replacement frequency is not high, the monthly demand is not particularly large, DT INDUSTRY machinery research and development design of DTS60 low speed strip series to meet this demand. The production line has the main functions of unwinding, leveling, slitting, tension, winding and so on. The main working equipment consists of feeding trolley, uncoiler, leveling machine and power, slitting machine and power, waste edge receiving machine, tension machine, winding machine, auxiliary support, unloading device, hydraulic system, electrical system and so on.
The production line is controlled by PLC numerical control system. Users can input data in the man-machine interface of PLC system according to the number of orders, the number of strips, the different width and speed of each strip. When the number of strips reaches, automatic cutting stop or complete roll can be set. The production line can be adjusted, with accurate measurement, automatic work, simple operation, more strong operability and excellent cost performance.
Detailed Photos
Product Parameters

DTS60 PRECISION METAL SHEET SLITTING CUTTING PRODUCTION LINE
Model	Sheet Thickness	Coil Width (mm)	NO. of Slitting (pcs)	Tolerance (mm/m)	Line Speed (m/min)	Coil Weight (Tons)
DTS60-1x650	0.2-1	150-650	30-8	±0.05	0-60	3,5
DTS60-1x850	0.2-1	300-850	30-8	±0.05	0-60	5,10
DTS60-1x1050	0.2-1	300-1050	30-8	±0.05	0-60	5,10
DTS60-1x1300	0.2-1	400-1300	30-8	±0.05	0-60	10,15
DTS60-2x650	0.3-2	150-650	30-8	±0.05	0-60	3,5
DTS60-2x850	0.3-2	300-850	30-8	±0.05	0-60	5,10
DTS60-2x1050	0.3-2	300-1050	30-8	±0.05	0-60	5,10
DTS60-2x1300	0.3-2	400-1300	30-8	±0.05	0-60	10,15
DTS60-2x1600	0.3-2	400-1600	30-8	±0.05	0-60	15,20
DTS60-2x2000	0.3-2	500-2000	30-8	±0.05	0-60	15,20
DTS60-3x1300	0.4-3	400-1300	30-6	±0.05	0-60	10,15
DTS60-3x1600	0.4-3	400-1600	30-6	±0.05	0-60	15,20
DTS60-3x2000	0.4-3	500-2000	30-6	±0.05	0-60	15,20
DTS60-4x1300	0.5-4	400-1300	30-6	±0.05	0-60	10,15
DTS60-4x1600	0.5-4	400-1600	30-6	±0.05	0-60	15,20
DTS60-4x2000	0.5-4	500-2000	30-6	±0.05	0-60	15,20
DTS60-6x1600	0.6-6	400-1600	30-5	±0.08	0-60	15,20
DTS60-6x2000	0.6-6	500-2000	30-5	±0.08	0-60	15,20
DTS60-8x1600	0.8-8	400-1600	30-5	±0.08	0-60	15,20
DTS60-8x2000	0.8-8	500-2000	30-5	±008	0-60	15,20

Main features
1) Economical low-speed longitudinal shear, suitable for internal rigid demand of enterprises;
2) PLC man-machine interface one-button control system;
3) Famous electric control brands from Germany and Japan are adopted;
4) Can add plate head shear cutting material, low energy consumption.
Our service
Making a perfect proposal for your production line;
Designing the suitable machines based on your requirements;
Manufacture machines you need;
Inspecting, packing, uploading and shipping service;
Offering all related auxiliary machines, spare parts and consumable tools;
Installing and adjusting machines on site and technology training your labors for operation;
Trial production on site till everything is going well;
On-site technology support if customer needs.
24 hours service online before sales and after sales.
Company Profile
Guangzhou DT Export and Import Co., Ltd was established in Guangzhou in 2012, we are an industrial and trading company special for Furnace and related machineries for Level continuous casting production line, Upwards continuous casting production line, they are casting machineries, cutting machineries, peeling machineries, straightening machineries, and combined drawing machineries and all other related metallic processing machineries. Our foundry is about more than 5000 square meters, and more than 100 employees who are in search and development team, overseas sales and service team, technology support team. Our factory passed ISO 9001: 2008. And Presented Audited supplier by SGS-CSTC since 2013.
Our advantages: Qualified Machines; Professional technology, Efficient Service, Worry-free Guarantee.
Our Values: Products as the fundamental, Customers as the center, Create a win-win situation.
