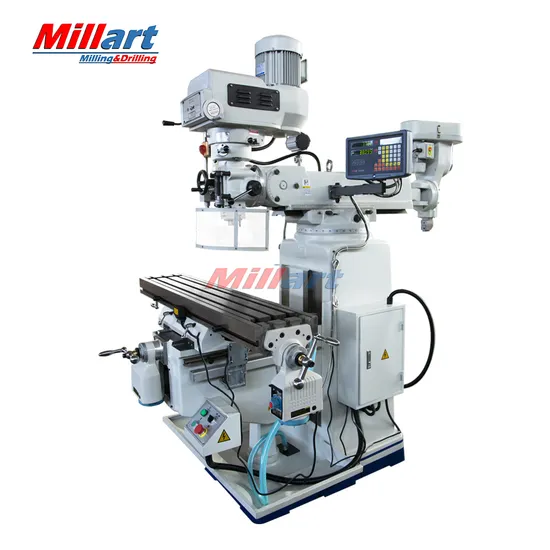

X6325 Turret Milling Machine with Variable Speed Milling Head

Product Description

X6325 Turret Milling Machine with Variable Speed Milling Head
Feature:
1.Turret Milling Machine has reasonable construction and superior machining functions such as drilling, boring, milling of plane, inclined plane and slot, and such functions available by use of the corresponding attachments as milling of helix slot, round surface, rack, gear and spline
2.Rectangular guide way on Y-axis is featured a good rigidity and stability.
The guide way on Radial Milling Machine saddle is lined with TF wearable material
3.High speed milling head from Taiwan,with variable speed adjustment.
4.Harden the slide way and table surface
5.Machining the T slot by special tools, make the T slot does not extend out of the table edge, which increase the rigidity and make the machine have good appearance
6.The slide way have been precision scraped by hand. Which could keep high precision and smooth moving
7.XYZ axis screws are made in Taiwan
8.XY screw with two nut make it easy to adjust space between the screw and nut.
9.The XY screw bracket is designed in one base, have good precision and rigidity.
10. The electro system have been designed according to the CE standard
Technical parameter:

Model	X6325
Table size	254*1270 (254*1370 optional)
Longitudinal travel(mm)	870
Cross travel(mm)	440
Vertical travel(mm)	400
T-slot No.and size(mm)	3*16
Ram travel(mm)	470
Distance from spindle nose to table(mm)	0-400
Spindle speed	Variable:60-4200 rpm
Spindle hole taper	R8 / ISO30 ISO40 is optional
Auto quill feed(mm/r)	3 steps 0.04/0.08/0.15
Spindle travel(mm)	127
Spindle motor	2.25kw/3hp
Head swivel	90°
Head tilting	45°
Dimension of package	1516*1550*2080
G.W/set(kgs)	1200/1300

Standard accessories:

Drill chuck

Collet chuck kits

Coolant system

Chip tray

Lubricating

Reduction sleeve

Working lamp

Draw bar

Splash guard

Tools and box

Optional accessories:

X axis power feed motor

Y axis power feed motor

Z axis power feed motor

2 axis Digital readout

3 axis Digital readout

Air draw bar

58 pcs Clamping kits

Spindle protection

Worktable protection

Machine vice

Variable spindle speed

Frequency mill head

Electric slotting head

Rotary table HV-10

Universal dividing head F11-125A

Separately operate penal box
