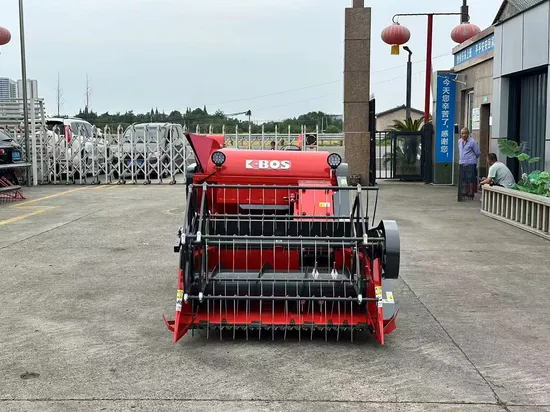

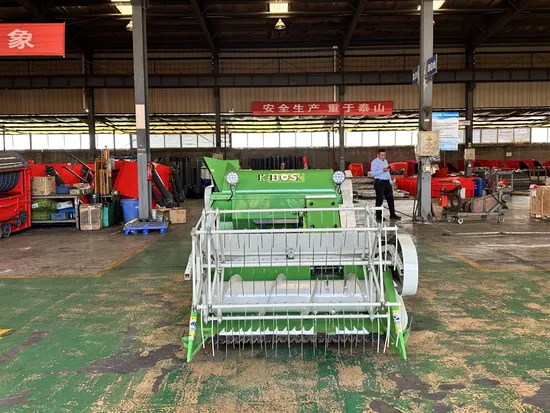

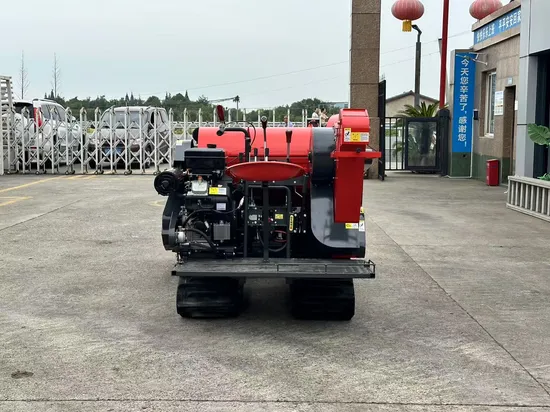

Model 4LZ-1.2T is the multi-functional Full-Feed,Self-Propelled,Riding harvester.
This small model combine is specially for small-scale field in hilly and mountain area or island area;
★Mini model combine ★Small-scale field in hilly and mountain area or island area;
★Manpower saved and efficiency improved small harvester.
| Product Model | 4LZ-1.2T Combine Harvester |
| Overall Dimension Length×Width×Heights(mm): | 3200×1650×1350 |
| Weight (kg) | 660 |
| Productivity of Operating Hours(hm²/h): | 0.15~0.25 |
| Engine | Engine Model | LC2V80FD |
| Rated Power(kw/hp) | 18KW/24.5HP |
| Engine Type | Vertical,Four-Stroke,Air-Cooled,Gasoline Engine |
| Rated Rotation Speed (r/min) | 3600 |
| Traveling System | Type of Gearbox: | Mechanical Stepped Transmission 4 (Slow,Fast,Empty,Backward) |
| Rubber Track(mm): | 66x48x400 |
| Gauge | 750 |
| Minimum Ground Clearance (mm) | 289 |
| Cutting header | Height Adjustment | Hydaulics. |
| Cuting Width(mm) | 1280 |
| Header auger type | Telescopic Screw Conveying |
| Pickup Reel | Eccentric Tooth(off-centre) |
| Threshing System | Threshing System | Spiked Tooth Axial Flow |
| Threshing Cylinder Quantity | 1 |
| Cylinder Diameter×Length(mm) | 400×1060 |
| Cleaning Mechanism Type | Air and Screen Cleaning |
| Grain Storing | Manual Operation | Small Tank by Manpower |
