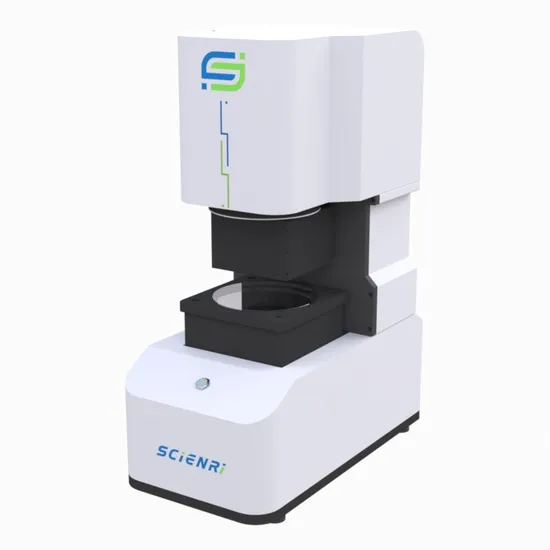

One Click Flash Test Stability Measuring Instrument

Product Description

High precision, large field of view, one click flash testing;
Auto focus, automatic edge searching, and automatic judgment of defective products;
When extracting edges with burrs or defects, automatically treat them as abnormal points for removal
Accurate flash testing, capable of identifying multiple workpieces and conducting inspections, with a wide range of applications
Suitable for various industries, electronic products, hardware accessories, mobile phone accessories, etc;
Fast measurement and simple software operation can achieve stable measurement results;
Can be equipped with coaxial light, auxiliary light sources, etc;

model	3020
Actual measurement size	120*80*600
certainty of measurement	(3+L/200)μm
Overall dimensions (mm)	660*560*960
The weight of the machine	180kg
basic machine	Base, column: Jinan granite precision 00, planness 3 μ m, physical stability
	Guide rail: FYV type high balance roller cross guide rail
	Grating ruler: Xintian precision closed grating ruler with a resolution of 1 micron
	Z-axis drive mode: manual focus
optical system	CCD	Hikvision Gigabit network color industrial digital camera
	camera lens	Can continuously zoom HD lens, optical magnification 0.7-4.5
	good appearance	The United States imported lamp bead LED ring cold light source, stable light source, high life
	rim light	The United States imported lamp bead LED round cold light source, stable light source, high life
Bearing accessories	The Japanese NSK high-speed bearing		The Japanese NSK high-speed bearing
Limit switch parts	Japan Omron point limit switch		Japan Omron point limit switch
clutch	Japanese Mismi coupling		Japanese Mismi coupling
software system	Multi-language zonson intelligent automatic measurement system
	The 0. 1-micron resolution triaxial DC300 resolution system
	High-definition SDK2000 video acquisition system
appendix	maintenance instruction
	Factory inspection report
	A 1-micron resolution calibration sheet
	Each applicable connecting line

---
