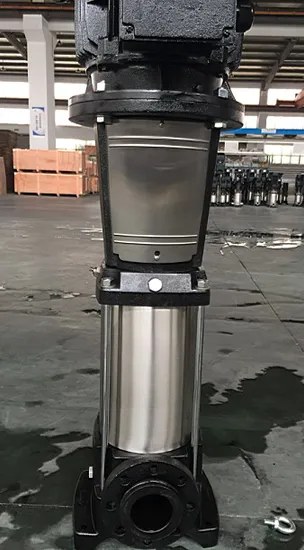

Stainless Steel Vertical Multistage Seamless RO Centrifugal Water Pump Manufacturer

Product Description

Product features:
1. Hot and cold clean, non flammable and explosive, containing no solid particles or fibers of the liquid, .
2. The liquid temperature: -15ºCto +70ºC hot water type +70ºC to +115ºC.
3. Flow range 0.4m3/h~240m3/h, head range 103m~305m.
4. Model range SDL1,2,3,4,5,8,10,12,15,16,20,32,45,64,90,120,150,200
5. Different material type CI, SS304, SS316L, Duplex all available. SDL is stainless steel type, SDLT is cast iron type.
6. The environment temperature: +40ºC.
7. The minimum entrance pressure curve: NPSH +0.5m.
8. Head of safety margin of 0.5m.
9. IP55, F class.
10.Single phase up to 2.2kw.
11.Standard color is black.Electrophoretic paint.
12.Cartridge mechanical seal, standard type is graphite/carbide tungsten, viton.

Model	SDL1	SDL2	SDL3	SDL4	SDL5	SDL8
rated flow. m3/h	1	2	3	4	5	8
Max.head. m	214	232	218	211	232	208
Model	SDL10	SDL12	SDL15	SDL16	SDL20	SDL32
rated flow. m3/h	10	12	15	16	20	32
Max.head. m	222	217	227	222	234	292
Model	SDL45	SDL64	SDL90	SDL120	SDL150	SDL200
rated flow. m3/h	45	64	90	120	150	200
Max.head. m	305	215	168	162.5	157	157.5
