| US$38,000.00-98,000.00 | 1 Set (MOQ) |

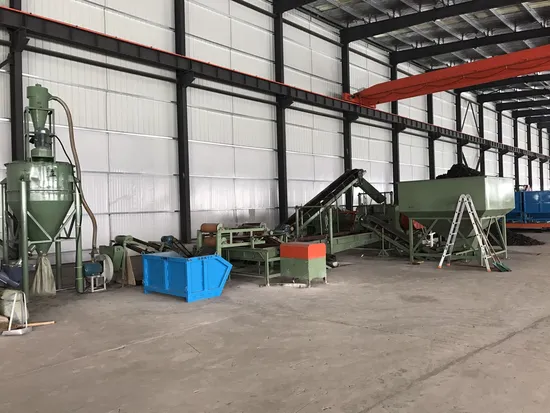

| No. | Item | Model | Quantity |
| 1 | Ring cutter | QQJ-20 | 1 set |
| 2 | Strip cutter | QTJ-380 | 1 set |
| 3 | Block cutter | QKJ-45 | 1 set |
| 4 | Loop machine | YQJ-285 | 1 set |
| 5 | Conveyor equipment | BSJ-1100, XSJ-600 | 2 sets |
| *6 | Rubber crusher | XKP400/XKP450/XKP560 | 1 set |
| 7 | Magnet separator | BCX-2, XCX-1 | 2 sets |
| 8 | vibrating screen | BS-8, XS-4 | 2 sets |
| *9 | Fiber separator | XFJ-1100 | 1 set |
| 10 | Rubber grinder | XMF-270/330/420 | 1 set |
| Type | XKP-400 | XKP-450 | XKP-560 |
| Front roll diameter(mm) | 400 | 450 | 560 |
| Rear roll diameter (mm) | 400(grove roller) | 450 (grove roller) | 510 (grove roller) |
| Working length of rolls(mm) | 600 | 650 | 800 |
| Front roll surface speed(m/min) | 17.32 | 23.2 | 25.56 |
| Friction ratio | 1:1.38 | 1:1.38 | 1:1.30 |
| Max.nip(mm) | 8 | 8 | 15 |
| Production capacity(kg/h) | 200-300 | 600-800 | -1500 |
| Motor power(kw) | 45 | 55 | 75 |
| Overall dimension(mm) | 3950*1800*1780 | 4770*1846*1835 | 5064*2284*1978 |
| Weight(kg) | 7000 | 12000 | 18000 |
