| Model | Specification | Photo |

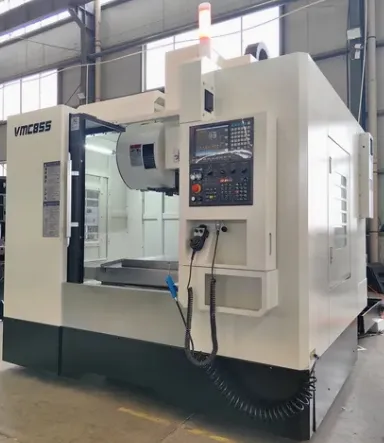

| JT-VMC855 | Control System | | GSK/Fanuc/Siemens/Mitsubishi/Syntec/KND/KT |
| Feed Motor | NM | 18/18/22 |
| Table Size | mm | 1000*550 |
| Maximum Allowable Load | kg | 800 |
| T-Slot Size | Mm/piece | 5-18*100 |
| Maximum X-Axis Travel | mm | 800 |
| Maximum Y-Axis Travel | mm | 550 |
| Maximum Z-Axis Travel | mm | 550 |
| Distance from Spindle Nose to Table Surface | mm | 120-670 |
| Taper (7:24) | | BT 40 φ150 |
| Spindle Speed Range | r/min | 8000 |
| Spindle Motor Power | kw | 7.5/11 |
| X/Y/Z Axis Rapid Feedrate | m/min | 36/36/24 |
| X/Y/Z Axis Ball Screw | mm | ∅4016 |
| Feedrate | mm/min | 1-8000 |
| Tool Magazine Type | | Belt type |
| Tool Magazine Capacity | pieces | 24 |
| Tool Change Time (Tool-to-Tool) | s | 2.5 |
| Pull Force | KN | 8 |
| Tool Holder Model | | MAS403 BT40 |
| Pull Stud Model | | MAS403 BT40 |
| Maximum Tool Diameter (Full/Empty) | mm | 80/120 |
| Maximum Tool Length | mm | 300 |
| Maximum Tool Weight | kg | 8 |
| X/Y/Z Axis Positioning Accuracy | mm | ±0.005/300 JIS |
| X/Y/Z Axis Repeatability | mm | ±0.003/300 JIS |
| Machine Dimensions (L×W×H) | mm | 2700*2400*2400 |
| Machine Weight | kg | 5600 |
| Main Components | CNC System | GSK/Fanuc/Siemens/Mitsubishi/Syntec/KND/KT | | China |
| Servo Drive | System Compatible | | China |
| Three-Axis Ball Screw | 4016 | HIWIN | Taiwan |
| Three-Axis Linear Guide (Roller) | RGH45 | HIWIN | Taiwan |
| Tool Magazine | BT40 | Desu | Taiwan |
| Belt-Type Spindle (with Ring Spray) | BT40 | Aibeco/Taida/DanQuan | China |
| Pull Rod Cylinder | 4.5T | DanQuan/Haocheng | Taiwan |
| Main Pneumatic Components | n/a | AIRTAC | Taiwan |
| Automatic Lubrication System | n/a | Baoyu | China |
| Heat Exchanger | n/a | Wengheng | Shanghai |
| Work Light | M9-600/16W | OEN | Guangdong |
| Alarm Light | 5i-I2-A3-BBF-T | OEN | Guangdong |
| Three-Axis Telescopic Covers | n/a | Haidong | China |
| Cooling Pump | n/a | Deyang | China |
| Main Electrical Components | n/a | Delixi | China |
| Centralized Coolant Filter | 30KG | Quanguan | China |
| Chip Conveyor | Chain Plate Type + Chip Cart | Matched with External Sheet Metal | China |
| Standard Configuration | High-Precision HT300 Castings | Network Transmission Port or R232 Interface |
| Spindle Air Curtain | Drawer-Type Chip Conveyor |
| High-Stability Tool Magazine | Air Blowing System (Cooling or Cutting) |
| Luxury Explosion-Proof LED Work Light | Automatic Centralized Lubrication System (with Alarm Function) |
| Spindle Taper Cleaning Air | Luxury Work Alarm Indicator |
| High-Performance Servo Motor | Filter Tank System |
| Portable Control Handwheel | High-Pressure Water Pump |
| Leveling Bolts and Foundation Pads | Preloaded Nut for Three-Axis Screw |
| Optional Configuration | Fourth Axis | Rotary Table TJR255, Fourth-Axis Drive Motor, Hydraulic Station |
| Tailstock | Disc-Type Tailstock + Bridge Plate + L-Shaped Plate |
| Spindle Oil Cooler | |
| Electrical Components | Siemens |
| Chip Conveyor with Material Box | |
