Containerized Mobile RO Water Treatment Plant

Product Description

Containerized mobile RO water treatment plant
TDS range
Brackish water :1,000 mg/l to 10,000 mg/l.
Saline water/salt water: ≥10,000 mg/l
Brine water:10,000-35000mg/l,seawater ≥ 35000mg/l
Components: Raw Water Pump Multiple Media Filter Filter Media Activated Carbon Filter Filter Media Dosing Device Dosing Pump Dosing tank Cartridge Filter Filter element RO Unit--High Pressure Pump RO Membrane Membrane Housing Pressure Gauge Flow Meter Assembly Valve Frame Washing System Washing Pump Washing Tank
Pipes & Fitting Electric Control System-Control Panel PLC Programmable High&Low Pressure Switch Conductivity Meter Electrical instrument Wire & cable
Container type: water treatment unit is smartly installed into a standard container (20'GP or 40'GP),making it convenient for not only transportation,but also field hoisting and installation,placement and quick use,as well as operation and management.
More importantly,it is helpful to avoid massive civil works such as pipelines and electrical appliance,and save costs,and thereby especially suitable for use in remote area and island in the sea.It is available for both fixed mobile installations and suitable for urgent use in field operation and disaster relief.
Containerization (moveable) water treatment plant design in standards ISO 20" and 40" container or customized container,complete system installed and working in the container. It can be moved to different place,suitable for varier different raw water.Treated water meet WHO standard. It is integrant equipment for the people who in fieldwork.

Technical data

Model	Flow rate (L/h)	Power(KW)	Water use efficiency	RO membrane	Dimension
					L X W X H(mm)
RO-500L	500	1.5	≥ 50%	4040	1650X630X1800
RO-750L	750	2.5	≥ 50%	4040	1870X630X1850
RO-1000L	1000	2.5	≥ 50%	4040	1870X650X1850
RO-2000L	2000	3.5	≥ 50%	4040	2440X650X1750
RO-3000L	3000	4	≥ 50%	4040	2440X620X1850
RO-5000L	5000	7.5	≥ 50%	8040	2000X900X1800
RO-6000L	6000	9.5	≥ 60%	8040	3000X900X1800
RO-8000L	8000	13.5	≥ 60%	8040	3000×900×1800
RO-9000L	9000	14	≥ 60%	8040	4000X900X1800
RO-10T	10T/H	19	≥ 60%	8040	3000X900X1800
RO-12T	12T/H	19.5	≥ 60%	8040	4000X900X1800
RO-15T	15T/H	23	≥ 60%	8040	4000X900X1950
RO-20T	20T/H	28	≥ 60%	8040	5000X900X1950
RO-30T	30T/H	55	≥ 60%	8040	7000X900X1950

System process flow

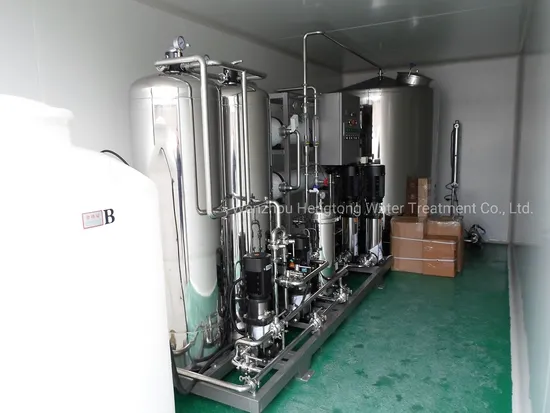

Water treatment equipment show
FAQ 1. Q: What products you provide?
A: We are specialized in RO system, EDI system, UF system, Sewage water treatment equipment, etc.
2. Q: What's the information you need before order?
A1: what's your raw water ?
A2: what's the capacity per hour of the equipment ?
A3: What's the application of purifier water ?
3. Q: How long is your delivery time?
A: Generally it is 30 days, Depends on your project.
