US$1.00
3,000-9,999 Meters
US$0.80
10,000-49,999 Meters
Basic Info.
Produceing Experience
15 Years
Export to
USA, India, UAE, Malaysia, Russia, Tanzania, Dubai
Power Cable Type
Two Pin Three Pin
Computer Cable Type
Power Line, Computer, Monitor Cable, Data Line
Transport Package
Carton,Coil, Drum or as Per The Customer′s Request
Production Capacity
500km Per Month
Packaging & Delivery
Package Size
45.00cm * 45.00cm * 40.00cm
Package Gross Weight
5.000kg
Product Description
Product Description Different length can be Customized as per customer's requirement.

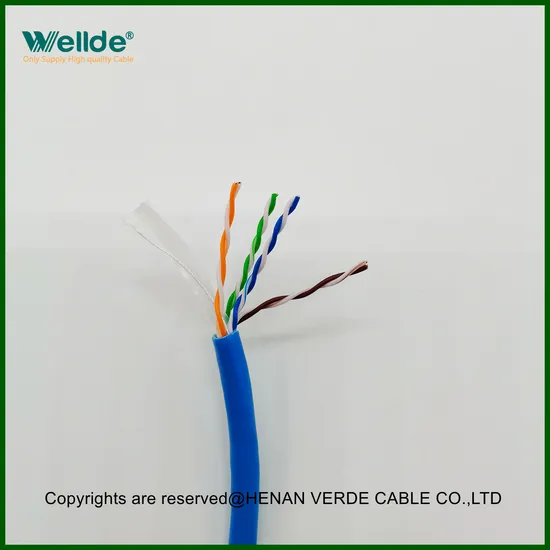

4 pair 23 AWG FTP Cat 6 cable
Product Description:
Type:Shielded Cat 6
Application: LAN cable
Product Parameters Structure:
| Conductor | 23 AWG copper wire |
| Insulation | HDPE or foamed PE, white insulated wire with color
marks |
| Pair color | White-blue/blue,white-orange,white-green/green,white-brown/brown |
| Drain wire | Tinned copper wire |
| shielding | Aluminum plastic composite type |
| Jacket | PVC,CMX,CM, CMR, Low smoke halogen, free for option, nominal diameter 7.0 +/- 0.5 mm |
| Rip cord | Cross core, poly ribbon, without rip cord, or as per customers' option |
| printing | As per customers' requirements |
Testing standard:
YD/T1019-2013,ISO/IEC11801,TIA/EIA-568C.2,IEC/61156-5
Main applications:
Ethernet, 10Base-T,1000Base-T4,100Base-TX,ATM,multimedia,arterial wiring
Mechanical properties:
| Max pulling force | 80N |
| Min. bent radius | 65mm |
| Nominal weight | 60Kg/Km |
| Work temperature | -15~+70ºC |
| Install temperature | +5~+40ºC |
| Combustion property | IEC332.1,VW1,IEC332.3 or as per sheathing types |
| Product length | Standard length305m,or 500mm,1000mm as per requirements |
Electrical property:
Frequency
(Mhz) | RL
(dB) | ATT
(Db/100m) | NEXT
(dB) | PSNEXT
(dB) | ELFEXT
(dB) | Property
Impedance
(ohm) |
| 0.772 | 19.2 | 1.8 | 76 | 74 | 70 | 100±15 |
| 1 | 20 | 2 | 74.3 | 74.3 | 67.8 |
| 4 | 23 | 3.8 | 65.3 | 63.3 | 55.8 |
| 8 | 24.5 | 5.3 | 60.8 | 58.8 | 49.7 |
| 10 | 25 | 6 | 59.3 | 57.3 | 47.8 |
| 16 | 25 | 7.6 | 56.2 | 54.2 | 43.7 |
| 20 | 25 | 8.5 | 54.8 | 52.8 | 41.8 |
| 25 | 24.3 | 9.5 | 53.3 | 51.3 | 39.8 |
| 31.25 | 23.6 | 10.7 | 51.9 | 49.9 | 37.8 |
| 62.5 | 21.5 | 15.4 | 47.4 | 45.4 | 31.9 |
| 100 | 20.1 | 19.8 | 44.3 | 42.3 | 27.8 |
| 200 | 18 | 29 | 39.8 | 37.8 | 21.8 |
| 250 | 17.3 | 32.8 | 38.3 | 36.3 | 19.8 |
Detailed Photos
Workshop Views:
If you want to know more about us and our products,pls contact us.
Linda Lee
Vice General Manager
VERDE XLPE CABLE LIMITED
Focus on Wires and Cables
Be Your Most Reliable Supplier
>>
