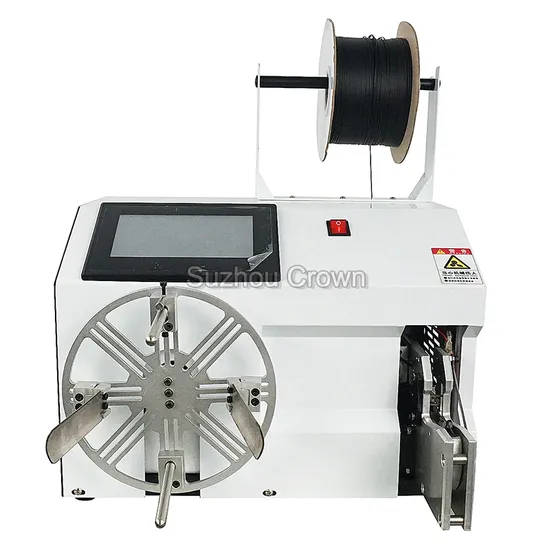

USB Cable Semi Automatic Wire Twist Tie Machine

Product Description

Product description:
Winding machine for rubberized fabric tape/adhesive plaster tape

Model	WL-30A
Voltage	AC 220V/110V;50Hz/60Hz
Power	80W
Winding diameter	50-200mm
Coil size	220mm
Winding speed	1-30 levels
Winding circle	1-999 circles
Twist bundle length	60-140mmmm
Binding diameter	Dia.5-40mm
Binding circle	Adjustable (Suggest 2-6 circles)
Twist speed	1-2 levels (suggest level 2)
Twist ties	Encased iron core PE material
Twist Shape	Round O&long&8 shaped
Weigth	35KG
Dimension	450x390x580mm (LXWXH)

Features:
This semi automatic wire twist tie machine is suitable for winding and tying USB cable, headphone cable, AC/DC power cable, network cable, telephone cable, audio/video cable, HDMI cable, etc. It can customize the number of coils, the number of ties and the length of the cable tie.
This semi automatic wire twist tie machine is suitable for winding and tying USB cable, headphone cable, AC/DC power cable, network cable, telephone cable, audio/video cable, HDMI cable, etc.
PLC program control, LCD text parameter setting, easy to operate
Using stepper motor, the worker only needs to put the wire on the winding port and step on the foot pedal once to start the automatic winding, and then put the winded wire at the tying port, and the machine can automatically tie the wire
This machine can customize the number of coils, the number of ties and the length of the cable tie
The motor is equipped with brake control, and the reel can be turned and stopped at a fixed point, which is very convenient for next operation
Product show:
Machine processing samples:
Related products:
FAQ:

1.How to order?

Please contact my Email for much more details, you can place order with us directly or through ****** online transcation after confirmation.

2.What's your payment terms?

We accept trade assurance order, T/T,L/C, western union, Paypal etc.

3.How long does the production time?

Generally 3~7 days, if there's customized model or other request will be adjusted.

4.How do you packaged the products?

Small size machine, we will package it in standard neutral carton. Larrge size machine, we will package it in standard wooden cases.

5.What can you provide for us?

Our service We provide: · Best products and factory price. · On-time delivery and the shortest delivery time. · 1year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free and you need to pay for the delivery. · OEM and customized service. · User manuals will go with relative machines. · QC: All products will be checked before delivery. · Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers · Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance. · Operation Guidance: If you have any problem with operation, please feel free to contact us.

Company information:
Certificate:
Contact:
Our Services 1, One year guarantee for the whole machine except blade and belt.
2, 24 hours technical support by email.
3, User-friendly English software and user manual.
-Purchase guidance
If you are not sure which model is the best option within your budget, please send us the parameter or wire, it's our pleasure to make a recommendation and comparison models
to you.
---After Sale Service
Don't worry, we are here to help. Crown provides lifetime after sale support to our customers including operation guidance, parts replacement, maintenance support. Just feel free to contact us!
--- Technical Support
In some cases, professional technical support will be needed, such as parameter meter set-up for difficult-to process wires. Crown engineers are here for your assistance.
---Others
Compensation: If any unqualified product is found, we'll pay the compensation or send newly qualified products to customers.
Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.

---
