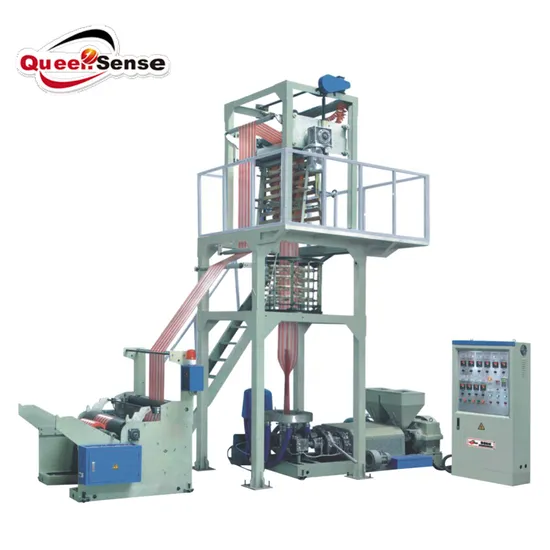

QS-DC45*2 Film Blowing Machine Double Color Film Blowing Machine

Product Description

PRODUCT INFORMATION
Product Name: Double Color Film Blowing Machine
Model:QS-DC45*2/50*2
Film Width: 200-800mm
Introduction:
This machine is used for blowing HDPE LDPE LLDPE film. Products are widely used in compound film, packaging film, agricultural film and etc. Machine have customised die head for double colors stripe.The machine uses the specially designed stripe distribution die head which can produce double colors film and standard film.

Model	QS-DC45*2	QS-DC50*2
Film width	200-600mm	300-800mm
Film thickness	0.008-0.1mm
Suitable material	HDPE/LDPE/LLDPE
Max.Extrusion	40kg/h	50kg/h
Screw diameter	45mm*2	50mm*2
Main motor	11kw*2	15kw*2
Air ring	620mm	780mm
Die size	60mm	80mm
Air blower	3kw	3.7kw
Roller width	700mm	900mm
Machine size	4.8m*1.9m*4.3m	5.5m*2.1m*4.5m
Machine weight	2500kg	3000kg

TEAM AND WORK:


PACKING:


EXHIBITION:

FAQ:
A. When your company was found?
B. Our company was found on 2010 , our sales team has more than 15 years experience in the plastic machinery industry.
A. What are products do you supply?
B. We are manufacturer of Plastic/Biodegradable film blowing machine,Bag making machine,printing machine,plastic recycling machine etc.
A.How about your products warranty ?
B.One year(12 months) Warranty will be provide from the date of container arrive Clients'factory.If machine parts are broken due to quality problem within warranty period, we will send new part for free( Any artificial misuse or destory prepensely is not included within the limitation of Quality Guarantee).
A. What are your Payment and delivery terms?
B.Payment term:
1) T/T, 30% as prepaid ,70% before delivery
2) L/C, 30% by T/T ,70% as L/C at sight, and for clients from Bangladesh&Ethiopia ,we accept 100% L/C at sight.
Delivery time: Standard will be in 30-40 working days
A.What Technical Support we can get if order machines
B.We can provide Installation Drawings,Basic operating instructions,Operation explanation through Video&Photos,Online video calling for technical support if necessary.
A. When your company was found?
B. Our company was found on 2010 , our sales team has more than 15 years experience in the plastic machinery industry.
A. What are products do you supply?
B. We are manufacturer of Plastic/Biodegradable film blowing machine,Bag making machine,printing machine,plastic recycling machine etc.
A.How about your products warranty ?
B.One year(12 months) Warranty will be provide from the date of container arrive Clients'factory.If machine parts are broken due to quality problem within warranty period, we will send new part for free( Any artificial misuse or destory prepensely is not included within the limitation of Quality Guarantee).
A. What are your Payment and delivery terms?
B.Payment term:
1) T/T, 30% as prepaid ,70% before delivery
2) L/C, 30% by T/T ,70% as L/C at sight, and for clients from Bangladesh&Ethiopia ,we accept 100% L/C at sight.

---
