Professional Sofa Tensioning Machine with Efficient Elastic Belt Technology

Product Description

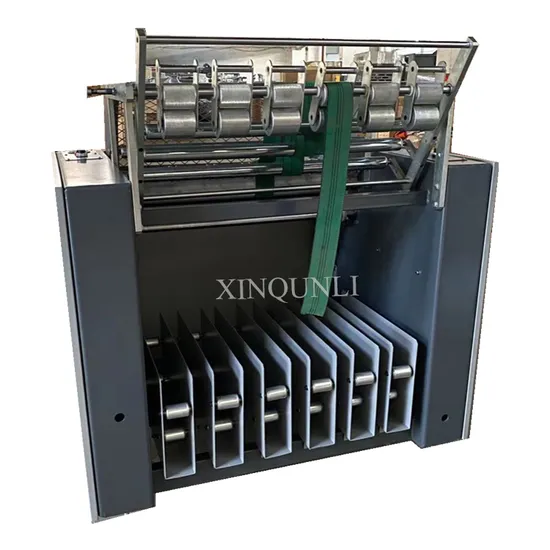

Elastic Belt Tensioning Machine
Product Usage This machine is expertly designed for efficiently tightening and securely nailing elastic bands on sofas and chair frames. It ensures a consistent stretch tension of the elastic belts, offers evenly spaced, adjustable belts, and provides the flexibility to freely select the number of belts required..
The machine allows for easy adjustments of both the length and tension of the elastic belt to meet operational needs before use..
The operating procedure involves: feeding the belt with a button, executing outer nailing, retracting with a button, performing inner nailing, and finally cutting the belt.
Detailed Photos
Meticulously Crafted Product Components
A. Power Switch
-----------Effortlessly initiate or gracefully halt machine operation.
B. Precision Timer
-----------Accurately record the operational time of each conveyor belt.
C. Illuminated Power Light
-----------When the machine is in action, this light shines bright.
D. Seamless Tape Feed
-----------Efficiently conveys the belt from the machine with precision..
E. Inching Button
-----------For fine and precise adjustment of belt conveying.
F. Take Back
-----------Reverse and tighten belts with ease and control.
G. Emergency Button
-----------Forcibly executes an emergency stop to ensure safety instantly..
H. Highly Accurate Pressure Gage
-----------Displays the precise air pressure value for optimal performance..
I. Air Pressure Adjustment Button
-----------Effortlessly fine-tune the air pressure to meet your needs..
J. Air Release Button
-----------Swiftly and safely release the air pressure as required..
Product Parameters

Machine Name	Elastic belt tensioning machine
Model Number	ESF003-3A
Belt Number	≤6
Belt Outlet Width	≤740mm
Belt Width	≤80mm
Air Pressure	0.3~0.6Mpa
Voltage	380v/220v/50Hz
Power	0.4kw
Machine Size	1200x900x1250mm
Machine Weight	380kg

We have 2 kinds of Elastic belt tensioning machine in standard, if you need customize, welcome to inquire!
Model NO.	Belt Number	Belt Outlet Width	Belt Width	Air Pressure	Power	Machine Size	Weight
ESF003-3A	≤6	≤740mm	≤80mm	0.3~0.6mpa	0.4kw	1200x900x1250mm	380kg
ESF003-3B	≤8	≤1100mm	≤80mm	0.3~0.6mpa	0.4kw	1550x900x1250mm	450kg

Applied Product
Product Types
Our premier product selection encompasses
the innovative Sofa Forming Foam Machine, versatile Sofa Nail Buckle Machine, robust Sofa Foot Press Machine, high-efficiency Mattress Compressor, specialized Railing Coating Assembly Line, fully Customized Furniture Production Line, and advanced Automated Sawing Equipment, among others.
Building on this foundation, we've expanded our lineup with cutting-edge additions such as the new Sofa Spring Nail Buckle Machine, state-of-the-art Sofa Spring Machine, high-precision Sofa Nail Gun, sophisticated Sofa Backrest Machine, Sofa Armrest Phone, and a range of other complementary sofa-related equipment.
Revolutionary Fiber Automatic-Feeder, Opening, Weighing, and Filling System
With our advanced PLC programmable control system, a single operator can seamlessly manage the entire process from start to finish:
beginning with feeding, followed by opening, precise automatic weighing, and culminating in efficient filling. The system boasts a remarkable filling frequency of approximately 180-200 pieces per hour.
Incorporating automatic delivery, fiber opening, mixing container, and precision filling complete with scale
Empowered by PLC programmable control, an individual can efficiently oversee the entire workflow: Starting from Feeding, followed by Opening, precise Automatic Weighing, and concluding with Filling. This system achieves an impressive throughput of about 180-200 fills per hour. Fiber Mixing, Opening, and Filling System
Two distinct short fibers, each of varying specifications, are expertly handled through feeding, proportional mixing, skillful opening, and precise filling. Company Profile

Shenzhen XINQUNLI Machinery Co., Ltd.
Founded in January 1995, Shenzhen XINQUNLI Machinery Co., Ltd. stands as a pioneering modern enterprise in China, dedicated to the research, development, and manufacturing of Sofa, Bed, and Woodworking machinery. As a prominent leader in the industry, we possess unparalleled competitiveness in product innovation, technological advancements, production expertise, and comprehensive sales services. Our cutting-edge products are highly esteemed in the marketplace, setting standards of excellence.
Our unwavering commitment is to elevate the industrial standards of sofa and furniture manufacturers. By driving production through standardization, mechanization, and informatization, we empower sofa enterprises to achieve unprecedented efficiency and quality. Our relentless pursuit of research and innovation ensures our leadership in creating flexible and intelligent manufacturing solutions.
We proudly operate three large-scale factories:
1. Specializing in the design and manufacturing of complete production lines for sofas, pillows, and cushions.
2. Home to advanced CNC contour cutting machines, featuring both horizontal and vertical cutting machines equipped with circular knives.
3. Dedicated to crafting automatic woodworking machinery tailored for sofa and furniture factories.
Our professional R&D team, comprised of senior engineers and seasoned specialists, excels in independent research, design, and production. We boast robust capabilities and a comprehensive after-sales service system to ensure customer satisfaction.
Our professional R&D team, comprised of senior engineers and seasoned specialists, excels in independent research, design, and production. We boast robust capabilities and a comprehensive after-sales service system to ensure customer satisfaction.
Our distinguished product range includes the sofa forming foam machine, sofa nail buckle machine, sofa foot press machine, mattress compressor, railing coating assembly line, customized furniture production line, and automated sawing equipment, all engineered for precision and reliability.
Building on our legacy, we have expanded our offerings with innovative equipment such as the new sofa spring nail buckle machine, sofa spring machine, sofa nail gun, sofa backrest machine, and sofa armrest phone, among other sophisticated sofa-related devices. Certifications
We take pride in announcing that our esteemed products have successfully attained the prestigious CE product certification. In addition, they have passed a series of rigorous quality index tests conducted by the National Woodworking Machinery Testing Center. Our dedication to innovation and excellence has been recognized with an impressive tally of 52 national technical patents and a host of honorary titles. In addition, Shenzhen Xinqunli Machinery Co., Ltd. boasts a specialized and highly-skilled technical team. We are dedicated to offering our valued customers unparalleled expertise, including comprehensive technical consultations, meticulous factory process planning, and access to our avant-garde mechanical products and services.
We are proud to showcase our achievements with 4 prestigious Sofa Machinery Patent Certificates and 7 esteemed Honorary Certificates, reflecting our commitment to innovation and quality.
Our pioneering efforts in the field of woodworking are evidenced by 5 coveted Woodworking Machinery Patent Certificates and 8 distinguished Honor Certificates, highlighting our relentless pursuit of excellence.
Our forward-thinking approach to automation is validated by 5 Automation Machinery Certificates and 5 Honorary Certificates, which stand testament to our advanced technological capabilities.
Our expertise in crafting unique solutions is underscored by 8 Non-Standard Customized Mechanical Certificates and 10 Honorary Certificates, showcasing our ability to tailor innovations to meet specific needs. Packaging & Shipping
FAQ
Q1: Are you factory or trading company?
A1: We are the manufacturer and we have 28 years factory experience. As only the machine made by ourselves, the quality can be trusted, and the most important thing is that we can do better after-sales service. We know how to fix the problem of every part easily, so welcome to visit to our factory.
Q2: I need your machine, can you give me some suggestions?
A2: Sure, we will give suggestions of the most suitable machine. Before that, we need to know some information, such as day/month capacity, process materials, Production process, etc., to determine the main parameters.
Q3: What should I do if we are not able to operate the machine when we receive it?
A3: We will send you the operation manual and video demonstration instruct you. Besides, we have professional after-sale group to customer 's site to solve any problems.
Q4: How could I get the spares on machines?
A4: We will send extra sets of easy broken spares and accessories, like blade, knife head, PVC hose, screw rod etc. Non-artificial damaged spares will be sent freely and shipping free during 1 year's warranty.
Q5: Is there any insurance which I pay for to guarantee I will get the right machine?
A5: We are an onsite check supplier from MIC. Trade Assurance provides quality protection, on time shipment protection and 100% safe payment protection. Our factory already highest stars of the grade.
Q6: What's the payment terms and trade terms for customers?
A6: You need to pay 30% as prepayment at first, then we will start to make production. When the machine is completed, we will send pictures or videos to you, and then you need to pay the balance. We will ship the machine to you after we receive your full payment.
Q7: How long is the delivery time?
A7: For standard machines, it will be 7-10 days; For non-standard machines and customized machines according to clients' specific requirements, it will be 15 to 30 days.
Q8: Do I need to pay for the extra cost like tax or duty?
A8: It is the buyers' responsibility to pay the custom duty.The shipping fee will not include the tax, please pay attention to this.

---
