High-Speed Plastic Injection Molding Machine with Hxh350

Product Description

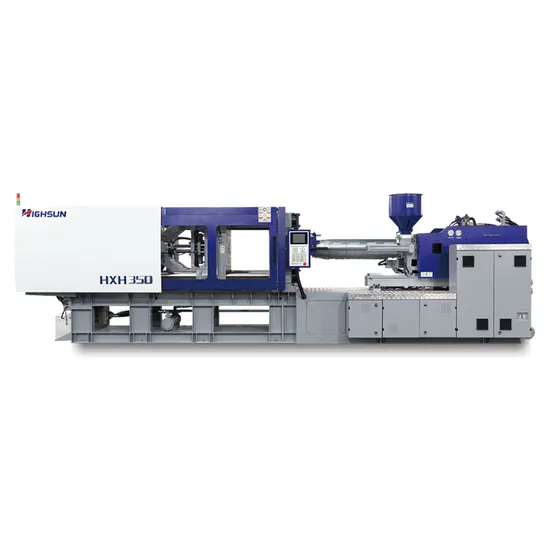

HXH350 injection molding machine
TECHNICAL PARAMETER TABLE
Specification of HXH350

MODEL: HXH350
TECHNICAL PARAMETER TABLE			A	B
INJECTION UNIT	SCREW DIAMETER	mm	55	60
	SCREW L/D RATIO	L/D	24	22
	INJECTION CAPACITY IN THEORY	cm3	582	692
	INJECTION WEIGHT(PS)	g	529	630
	INJECTION PRESSURE	MPa	171	144
	INJECTION VELOCITY	mm/s	380
	PLASTICIZING CAPACITY	g/s	80	97
	SCREW SPEED	rpm	400
CLAMPING UNIT	CLAMPING FORCE	KN	3500
	MOVING MOULD-PLATE STROKE	mm	630
	MAX. MOULD HEIGHT	mm	650
	MIN. MOULD HEIGHT	mm	250
	SPACE BWTWEEN TIE-BARS (W*H)	mm	710*660
	HYDRAULIC EJECTOR FORCE	KN	125
	HYDRAULIC EJECTOR STROKE	mm	180
	EJECTOR NUMBER	n	13
OTHERS	PUMP PRESSURE	MPa	19
	MOTOR/DRIVING POWER	KW	37+37
	HEATING CAPACITY	KW	20.3
	MACHINE DIMENSION (L*W*H)	m	6.98*1.81*2.04
	MACHINE WEIGHT	t	13.5
	OIL TANK CAPACITY	L	800

HIGHSUN thin-wall high speed IMM series is based on years of experiment and researching,specifically for the molding cycle is short,high speed injection molding requirement products,Outstanding performance in the aspects of motion characteristics,machine precision,sevice life and so on.Widely used in packaging,medical and 3C electronic products.
The detial of Highspeed machine

Product advantages:
1.With CANbus EtherCAT bus communication,the compuer sustem is full digital controlled.
2.The temmperature contral adopts special control module,The accuracy can achieve 1 degree.
3.With the power monitoring function,it can monitor the current energy consumption during the production.
4.The special single cylinder strcture drastically reduces the return-oil amount during the high speed injection.At the same time,it reduces the return-oil pressure,In this way,it increases machine injectuib acceleration.
5.In using the graphite steel sets as well as thin oil lubrication,the bent elbow connecting rods and guide bars have better bearing resistance and abrasive resistance,The machine has a longer service life.
6.Controlled by the proportional direction valve,The movement can accelerate quickly.During the high speed running,it can operate steadity and precisely control the mold open position.
7.The hydraulic system adopts double servo drive control.It has the advantages of high effciency,energy saving and low noise.Meanwhile,it can realize mold-open and charge sunchronization function.
HIGHSUN factory:
Workshop 1: SP(Middle-speed injection molding machine) and HXYD(Fully-electric and high-speed injection molding machine) production R & D workshop, also stored in the injection molding machine production required parts.
Workshop 2: HXM(Servo energy injection molding machine) and HXH(High-speed injection molding machine) production R & D workshop. Storage of manufactured machine, such as HXM 128tons, 158tons, 418tons, 478tons, HXH 260tons, 280tons, 430tons and so on.
Workshop 3: HXM(Servo energy injection molding machine), PVC injection molding machine, PET injection molding machine, HXS(Clear two-color injection molding machine) and HXH(High-speed injection molding machine) production R & D workshop. Storage of manufactured machine, such as HXM 98tons, 268tons, from 538tons to 2500tons, HXH 160tons, 200tons, 350tons, 380tons, HXS160tons, 200tons and so on.
Workshop 4: Stored in screw barrel, hopper, hydraulic motor, thermocouple, valve, sheet metal injection molding machine accessories.

Workshop 5 and 6 : HIGHSUN's independent R & D workshop, automatic processing center. According to customer feedback to the performance of the machine constantly improve, to provide customers with better injection molding machines.
COMPANY PROFILE
NINGBO BEILUN HIGHSUN MACHINERY CO., LTD. is located in the "China's plastic machine capital" - Beilun Science and Technology Park, Ningbo City, Zhejiang Province, covering an area of more than 70,000 square meters, with a construction area of more than 50,000 square meters, specializing in the production of "HIGHSUN" Brand high-grade precision plastic injection molding machine. "Take the technology road, create high-end machine" is Ningbo beilun highsun machinery co. It's business purpose, "pursuit of excel-lence, shaping perfection" is Ningbo beilun highsun machinery co.,Itd's business philosophy.
NINGBO BEILUN HIGHSUN MACHINERY CO. LTD. integrates R&D, processing, manufacturing, assembly and debugging of injection molding machine, and has long been committed to fine management and ze-ro-defect construction. It has formed a series of Ningbo beilun highsun machinery co.,It features represented by small all-electric, medium-sized connecting rod and large two-plate machine. The main push HXM servo energy-saving series, focusing on the promotion of oil-electric composite machine, clamping force from 98 tons - 3000 tons, and can accept special orders (clear two-color, mixed two-color, high-speed ma-chine, PET, etc.).

---
