Horizontal Professional CNC Lathe Integral Bed Manual 61125

Product Description

Product Description
Introducing the Horizontal Manual Normal Flange Lathe CW61125 from Shandong Shanshu CNC Machine Tool Co., Ltd.! Get
ready to experience the excitement and spirit of this incredible machine that is revolutionizing industries worldwide.
With its wide application in various sectors like rubber machinery, mine machinery, textile machinery, chemical machinery,
automobile manufacturing, tire mold machinery, and more, this lathe is a game-changer.
Our main products include heavy-duty face lathes, horizontal lathes, combination lathes, CNC lathes, vertical machines, face milling
machines, milling machines, and so much more. We've got everything you need to take your machining capabilities to the next level.

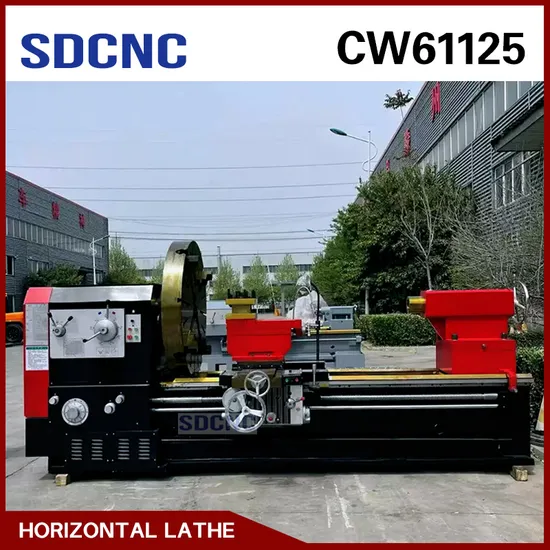

But let's talk about the star of the show - the Horizontal Manual Normal Flange Lathe CW61125. This lathe is designed to handle all
kinds of workpieces with its ability to turn the internal/external cylindrical surface, conical surface, end face, and more. It's perfect
for those large-diameter, medium-length workpieces that require precision and finesse.
Not only is this lathe structurally sound and rigid, but it also boasts impressive power and stability. And let's not forget about its
stunning appearance and user-friendly operation. It's truly the ideal product for processing all kinds of large-diameter workpieces.
But that's not all! The feed system of this lathe features a frequency control motor, allowing for stepless speed regulation. This
means you have more control and convenience when it comes to choosing the feed rate.
So, what are you waiting for? Take advantage of the incredible features and benefits of the Horizontal Manual Normal Flange
Lathe CW61125 from Shandong Shanshu CNC Machine Tool Co., Ltd. It's time to elevate your machining game and achieve
unparalleled results. Get yours today!
Specifications:
- Company Name: Shandong Shanshu CNC Machine Tool Co., Ltd.
- Product Name: Horizontal Manual Normal Flange Lathe CW61125
- Keywords: Cw61125/Flange Lathe/Facing in Lathe Machine/Lathe/CNC Lathe/Lathe Machine/CNC Machine/Horizontal Lathe/
Turning Lathe/Bulk Truck/Floor Lathe/Heavy Duty Lathe/Turning Threading CNC Lathe/Horizontal Normal Flange Lathe/CW61125
Lathe/CNC Lathe Machine/Manual Flange Lathe/Facing in Lathe/Turning Lathe Machine/Bulk Truck Lathe

Item	CW61125	Unit
Max. swing diameter of workpiece	1250	mm
Max.swing diameter over slide carriage	1000	mm
Max.the travel of tool post (cross)	650	mm
Max. travel of tool post(longitudinal)	2000	mm
Max. length of workpiece	550	mm
Max. weight of workpiece	2000	kg
Chuck diameter	800	mm
Giudeway width	760	mm
Spindle diameter	190	mm
Spindle bore	50	mm
Cutter bar section size	50×50	mm
Spindle speed range	23~180	r/min
Power of main motor	11	KW
Taper type of tailstock quill	morse taper 6
Automatic tool post	240	mm
Safety cover	1	set
Machine power supply	380v,50HZ,3P
Overall dimensions	3500×1650×1700	mm
Lathe weight	about 5	t
Standard configuration:1 headstock,1 bed and 1slide carriage, 1 piece of chuckΦ800mm equip with 4 steel jaws, 1 tailstock, 2 chuck wrenches.1 main motor.
Optional Configuration:1 piece of chuck Φ1000mm,1 main motor(6 level 11kw),1 lengthening bed.
Specific Notice: Customers can customize the lathes according to their workpieces.(Based on changing configuration).

---
