Electric Lock for Cabinets and Electronic Lockers with Door Status Reporting (MA1208LS)

Product Description

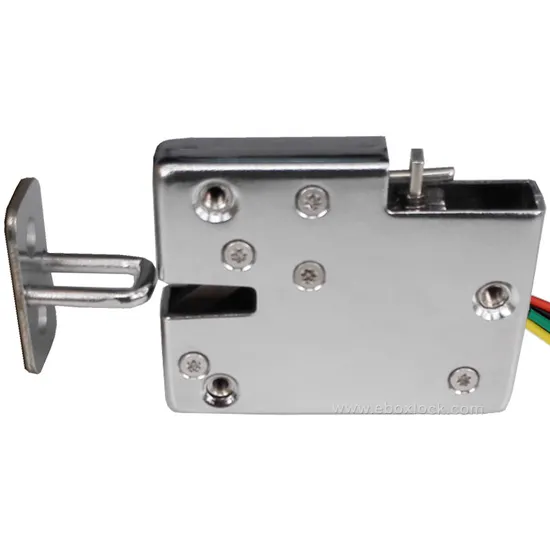

Electric Cabinet Lock (MA1208LS) is a compact and all-metal lock with monitoring, the electric lock is ideal for cabinets, drawers and lockers. Surface mounting either vertically or horizontally offers easy and flexible installation. The cabinet lock is compatible with any existing access control system or simply controlled through a remote keypad or key switch. An optional microswitch provides an output signal for remote monitoring or external access system control. It allows mechanical override for emergency open. Eboxlock Electric Cabinet Lock is energy saving, cost efficient, robust, easy to install and suitable for one or multiple cabinet applications.
Features
Available in 12VDC or 24VDC
Superior heavy duty metal construction
Chrome-plated steel housing
Convenient mechanical override enables manually release during power failure
Three-bolt regular triangle mounting enables high security and low install cost
Optional internal lock switch for detecting open/close output signal
Accepts access control signals from numeric keypad, RFID card, remote or fingerprint
Can be fitted to Cabinets, lockers, drawers and steel furniture etc
Patented Design
2 years limited warranty
Specifications
Operation Voltage 12/24VDC intermittent ±10%
Power Consumption 12V DC 800mA
Operation Mode Fail Locked
Holding Force 150KG
Maximum power on time Less than 30 second
Solenoid Rated for intermittence use
Cycle Rating More than 1,000,000 times
MS Contact Rating 2A @25V
Mechanical Override 29.5mm gap
Working Temperature -20ºC ~ +60ºC
Dimensions LxWxH 72mm*56mm*13.8mm
Gross Weight 250g
Protection Class IP35
Compliance CE and RoHS certificate
We offer customization for cable length and connector type to better meet the exact requirement of your application.

Options for customization
Voltage	Current	Trigger Spring	Mounting holes	Material	Cable	Connector
9V 12VDC 24VDC 48V	800mA 1500mA 2000mA	5N 7N 15N 18N	M4x12 thread M4x12 thru	Steel Stainless steel	Twisted RVV Flat cable	Molex KF2510 PH RJ11

Package includes:
Applications:
1x lock body
1x hook
3x M4x12mm round head screws
3x M4x8mm sunk screws
Applications:
The electric cabinet lock is ideal for various applications as following:
Parcel Delivery Lockers
Smart Lockers
Vending Machine Lockers
Telecommunication Kiosks
Bank Locker Kiosks and Cash Drawers
Electronic Mailboxes
Electronic Motorcycle Trunk
Smart Bike& Scooter station Lockers
pharmaceutical cabinets, cash drawers and display cases
Beverage Freezers & Keyless Refrigerator Lockers
About Us
Dajiang is a designer and manufacturer specializing electrified locking solutions for lockers, cabinets and kiosks. No matter size-restricted enclosures or heavy-doored metal cabinets; we can meet your particular security requirement with customized design for your applications.
Our ranges cover electronic cabinet locks, electronic drawer locks, smart parcel locker control system, vending machine control system, and IOT control hardware and software. With professional security control solution, Dajiang locks and controllers is ideal for areas of parcel locker, smart lockers, vending lockers, cash drawers; post mailboxes; medicine and archive cabinets; Key Cabinets and mailbox.
Quality control melts into the whole process and our products are completed under continuous supervise and multistage of tests. We are very proud of our product and service. We are confident you will enjoy the experience with us and appreciate all opportunity to answer any questions or provide any further information.
Professional Package:
Shipment and Payment:

---
