Product Details
Product Description
Product Description
Brief Introductions:
Type:
| 1A1
|
Bond:
| Vitrified
|
Application:
| High-speed steel, Carbide alloy
|
Specification:
| Customized
|
Brand Mark:
| Moresuperhard
|
Trade Terms:
| FOB
|
Packages:
| Hard carton
|
Delivery Time:
| 15 workdays by express
|

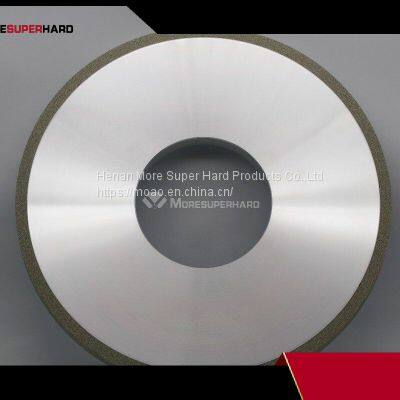

Introductions of Moresuperhard’s Vitrified Diamond & CBN Grinding wheelMoresuperhard’s production department mixed diamond and CBN abrasives in a certain ratio through a special process. Then mixed with the vitrified bond we developed, pressed, sintered, bonded, and finally made into a grinding wheel with two kinds of abrasives mixed. This grinding wheel can be used to process multiple materials at the same time, with excellent material removal rate and good life. This product belongs to our company's core high-end products. After long-term research and development experiments, it was finally successfully developed and received very good feedback from former customers.
Model
| D (mm)
| T (mm)
| H (mm)
| X (mm)
|
1A1
| 25
| 12
| 6
| 6
|
50
| 12
| 6
| 6
|
100
| 12
| 12
| 10
|
300
| 25
| 12
| 10
|
400
| 25, 50
| 127
| 10, 25
|
500
| 25, 50
| 127
| 10, 25
|
600
| 25, 50
| 254
| 10,16,25
|
750
| 25, 50
| 304.8
| 50
|
914.4
| 25, 50
| 304.8
| 25, 50
|
1100
| 25, 50
| 304.8
| 50
|
Other specification can be made according to customer requirement
|
Advantages of Moresuperhard’s Vitrified Diamond & CBN Grinding wheel– Mixed Diamond and CBN Abrasive in a special proportion. Can be used in multiple materials and workpiece processing and machining.
– High cutting efficiency, good self-sharpening, less blocking, reducing the grinding burn occurs when the phenomenon of work
– Good flexibility will help to improve the surface roughness, mainly used for rough grinding, semi-fine grinding, polishing and other processes
– Compared to conventional grinding wheel, mixed diamond & CBN wheel has good material removal rates, longer wheel life and lower grinding costs
Service:– Detailed Specifications can be customized!
– Provide after-sales service.
– Technical support on usage.
– Return and exchange of products for non-human reasons.
About us:MORESUPERHARD is a professional manufacturer of grinding, cutting, polishing and dressing tools. Thanks to abundant experience in surface treatment, we design and offer a complete grinding and dressing solution to our customers in various industries. With innovative and creative development conception, MORESUPERHARD is tirelessly striving to provide excellent design, superior quality and perfect service to world-wide customers. More than 1000+ customers benefit from our professional technical services.
>>
