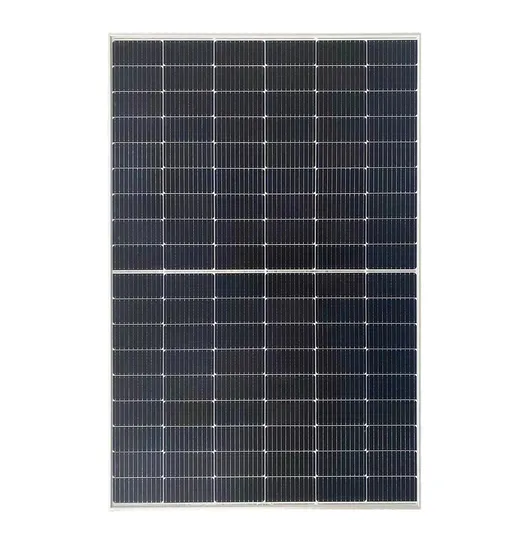

410W 450W 500W 550W 48V 9bb Monocrystalline Photovoltaic Solar Power Panels

Product Description

Product Description

Module Dimensions	1776*1052*35mm / 2094*1038*35mm
Weight	18.9kg / 23.5kg
Junction-Box	IP 67 or IP 68 rated
Cables	4.0mm²
Cell Orientation	12 cells(6*2)
Temperature Coefficients	Power temperature coefficient (%/ºC): - 0.45 %/ºC Current temperature coefficient(%/ºC): 0.065±0.015 %/ºC Voltage temperature coefficient(%/ºC): - 0.35 %/ºC NOCT-Normal Operating Cell Temperature: 45±2ºC
Module Warranty	25 - year limited warranty of 80% power output; 10 - year limited warranty of 90% power output; 5 - year limited warranty of materials and workmanship
Test	Fire test, Ammonia corrosion test, Salt mist corrosion resistance approved
Nearest shipment port	Ningbo or Shanghai

Electrical Characteristics
Model Number	FSM425M-144C	FSM430M-144C	FSM435M-144C	FSM440M-144C	FSM445M-144C	FSM450M-144C	FSM455M-144C
Testing Condition	STC
Maximum Power (Pmax/W)	425	430	435	440	445	450	455
Open Circuit Voltage (Voc/V)	48.3	48.5	48.7	48.9	49.1	49.3	49.5
Short Circuit Current (Isc/A)	11.23	11.31	11.39	11.46	11.53	11.6	11.66
Voltage at Maximum Power (Vmp/V)	40.5	40.7	40.9	41.1	41.3	41.5	41.7
Current at Maximum Power (Imp/A)	10.5	10.57	10.64	10.71	10.78	10.85	10.92
Module Efficiency(%)	19.6	19.8	20	20.2	20.5	20.7	20.9
STC (Standard Testing Conditions): Irradiance 1000W/m², Cell Temperature 25 ºC, Spectra at AM1.5

What we also can do
Application
Production process
Company Profile
Exhibition
Certifications
Packaging & Shipping
Our advantage
GRADE A SOLAR CELLS: to ensure all are high efficient grade A solar cells. HIGH QUALITY: fully automated production processes, each solar panel is tested strictly. PRICE ADVANTAGES: good price, low cost as industry chain integration with scale effect. AFTER-SALES ADVANTAGES: 24 hours service on line, timely and fastly solve porblems. FACTORY ADVANTAGES: more than 10 years experience in PV industry, with 25,000 square meters production base. FAQ
Q : How can we guarantee quality?
A : Always a pre-production sample before mass production;
Always final Inspection before shipment.
Q : Why should you buy from us not from other suppliers?
A : Intenergy is a global Solar energy provider with a presence in more than130 countries around the world.More than 1.5GW of Intenergy modules have been used in residential,
commercial and off-grid systems around the world.
Q : what services can we provide?
A : Accepted Delivery Terms : FOB ,CFR ,CIF ,EXW.
Accepted Payment Currency : USD ,EUR ,CNY.
Accepted Payment Type : T/T ,L/C ,Credit Card.

---
