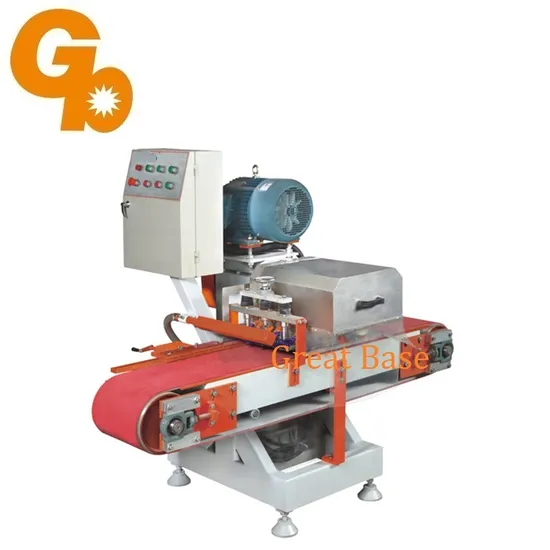

Multi Blades Auto Granite Marble Mosaic Cutting Machine

US$6,500.00-36,500.00 1 Piece (MOQ)

Basic Info.

Model NO.

GBPGQ-300

Usage

Granite, Marble

Application

Machinery & Hardware, Construction, Stone Industry

Source Voltage

380V

Automation

Automatic

Cutting Ability

High Speed

Control

Artificial

Certification

ISO, CE

Use

Cutting mosaic stone

Function

Cutting different mosaic products

Main motor

22/30kw

Color

Can be ordered

Number of blades

multi pcs

Transport Package

by Wooden Box

Specification

1900*1400*1700mm

Trademark

Great Base

Origin

China

HS Code

84641090

Production Capacity

100sets/Year

Product Description

Production Description
GBPGQ-300/400/600/800 Series Full Automatic Continuous Mosaic Cutting Machine
The GBPGQ-300/400/600/800 series full automatic continuous cutting machines are suitable to cut stone tiles into high level mosaic peices with different size and shape .
Feature and Advantage :
*Can cut Square /Rectangle /Lozenge/Hexagon/Triangle
*Reasonable design, easy to use
*High working precision -Acurrate size & neat edges
*High cutting efficiency
*Reliable performance.With stable mechanical properties, it could press the cutting pieces well when cutting mosaic for small size, so that keep the small cutting pieces won't fly out ,with high efficiency and good quality
Technical Data

Name	GBPGQ-300	GBPGQ-400
No. of spindle head	1	1
Belt width	321mm	421mm
Blade diameter	Φ150-300mm	Φ150-300mm
Max. cutting thickness	50mm	50mm
Total weight	1100kg	1200kg
Total power	20.55kw	20.55kw
Dimension	1900×1400×1700mm	1900×1600×1700mm
Main motor	18.5kw	18.5kw
Up/down motor	0.55kw	0.55kw
Belt motor	1.5kw	1.5kw
Belt speed	1-6m/minute	1-6m/minute

Products show
