Lanhao Sheet Metal Work Multi-Axis Bending Machine Metal Forming

Product Description

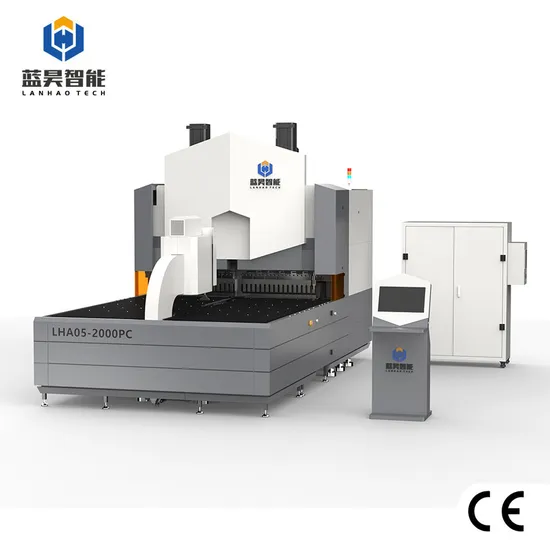

Product Description LHA-PC series intelligent flexible bending center adopts the pressing arm loading method, and the whole machine is designed and produced according to the standard of high-precision machine tools. It is suitable for mesh, corrugated, hollow and various flat or special-shaped work pieces. It has more functions such as automatic pressing arm adaption, oblique pressing point adaption, double C-axis rotation, wider range of application, and outstanding performance in terms of stability, reliability, etc.
Product Parameters

Items	LHA-1400PC1/1400PC3	LHA-2000PC1/2000PC3	LHA-2500PC1/2500PC3
Max. bending speed	0.2 second/time	0.2 second/time	0.2 second/time
Max. bending width	1400mm	2000mm	2500mm
Max. bending height	170mm(1400PC1)	170mm(1400PC1)	170mm(1400PC1)
	300mm(1400PC3)	300mm(1400PC3)	300mm(1400PC3)
Rated voltage	380v	380v	380v
Total motor power	40Kw	79Kw	79Kw
Average power	about 1.9Kw	about 2.6Kw	about 2.9Kw
Machine size	440*190*290cm	510*265*330cm	565*300*340cm
Total machine weight	about 12t	about 16t	about 19t
Max. bending thickness (thicker panel customizable)	UST 515N/mm2 304 stainless steel 1.5mm	UST 515N/mm2 304 stainless steel 1.5mm	UST 515N/mm2 304 stainless steel 1.5mm
	UST 410N/mm2 cold panel 2.0mm	UST 410N/mm2 cold panel 2.0mm	UST 410N/mm2 cold panel 2.0 mm
	UST 265N/mm2 aluminum panel 3.0mm	UST 265N/mm2 aluminum panel 3.0mm	UST 265N/mm2 aluminum panel 3.0mm
Minimum panel thickness	0.35mm	0.35mm	0.35mm
Four sides forming minimum inner size	140*190mm	140*190mm	140*190mm
Two sides forming minimum inner size	140mm	140mm	140mm
Max. bending size	1400*1400mm	2000*1250mm	2500*1250mm

Applications Lanhao flexible intelligent bending center bending sheet metal bending does not require molds, and can fold various complex shapes. It can fold complex shapes of various combinations such as right angles, non-right angles, arcs, upper and lower folds, and is used in the field of metal forming of different sheets in different industries.

---
